Scissor Grab
scissor grab is a kind od newly developed grab with high load ratio, high efficient, low fault rate and easy to clear out ship cabin. This grab can be equipped to any port crane or ship unloader which has four ropes.
Product Details:
1. Maximum capacity.
2. Low empty weight.
3. Low cost of maintenance.
4. Hardened shafts.
Specification:
Rated Capacity(T) |
Volume(m³) |
Weight(T) |
Wire Rope Dia.(mm) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
1 |
0.6 |
0.45 |
11 |
1300 |
1660 |
1000 |
1300 |
1300 |
1 |
0.75 |
0.51 |
11 |
1450 |
1790 |
1050 |
1352 |
1400 |
3 |
1.25 |
0.87 |
13 |
3250 |
3720 |
2100 |
2650 |
1500 |
10 |
4 |
4.5 |
23 |
4250 |
4530 |
2900 |
3750 |
2080 |
16 |
4 |
6 |
26 |
4325 |
4475 |
2675 |
4590 |
2000 |
20 |
5 |
7.5 |
28 |
4845 |
5000 |
2885 |
5110 |
2200 |
25 |
6.3 |
9.4 |
32 |
5450 |
5800 |
3200 |
5730 |
2350 |
32 |
8 |
12 |
36 |
6140 |
6290 |
3400 |
6400 |
2600 |
40 |
10.2 |
14.5 |
40 |
6920 |
7070 |
3660 |
7200 |
2750 |
50 |
13 |
17.6 |
44 |
7785 |
7935 |
3965 |
8065 |
3000 |
63 |
16.5 |
21.8 |
48 |
8600 |
8815 |
4300 |
8930 |
3300 |

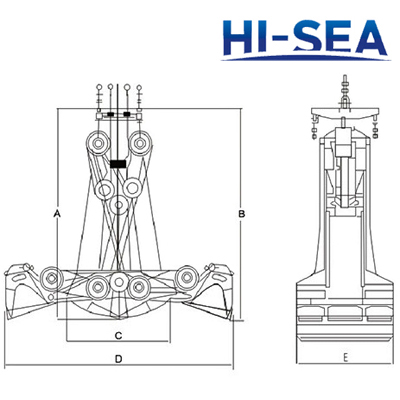

Sketch of the scissor grab
