Grab for Port
Loading and Unloading Grab
[Search Related Products]
Loading and Unloading Grab
It is mainly designed for handling of bulk materials in blocks, particles and irregular shapes. It is widely used in ports, steel plants and garbage treatment plants, with tower cranes, ship unloaders, traveling cranes and other type of cranes. The grab has its own hydraulic system, the key elements of which are of recognized brand imported abroad which ensure the high performance of the grab.
Product Details:
1. Type: multivalue/ double disc grab bucket
2. Volume: 0.5-20m³
3. Certification: ISO, CE
4. Size: standard size
Specification:
Volume |
Grab Weight |
Motor Power |
H |
H1 |
A |
B |
m³ |
T |
KW |
mm |
mm |
mm |
mm |
0.5 |
1.5 |
11 |
2180 |
1880 |
1570 |
2160 |
0.6 |
1.7 |
11 |
2190 |
1900 |
1600 |
2220 |
0.8 |
2 |
15 |
2380 |
1980 |
1700 |
2480 |
1 |
2.5 |
15 |
2410 |
2070 |
1800 |
2700 |
2 |
4.2 |
22 |
3330 |
2820 |
2220 |
3400 |
2.5 |
2.6 |
18.5 |
3214 |
2895 |
2247 |
3572 |
3 |
3.8 |
18.5 |
3214 |
2876 |
2500 |
3680 |
5 |
4.3 |
22 |
3720 |
3295 |
3000 |
4400 |
5.5 |
5.5 |
30 |
3690 |
3127 |
2420 |
3600 |
8 |
5.6 |
30 |
3930 |
3294 |
3460 |
5280 |
10 |
7 |
37 |
3820 |
3310 |
2680 |
4200 |
12 |
8 |
37 |
4560 |
4100 |
3900 |
5500 |
17 |
9 |
45 |
4780 |
4400 |
4200 |
6000 |
20 |
11 |
45 |
4889 |
4550 |
4400 |
6300 |

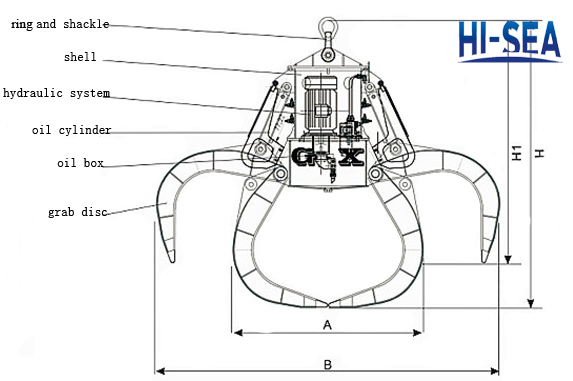

Sketch of the loading and unloading grab
