Single Rope Orange Peel Grab

Single Rope Orange Peel Grab

Single rope orange peel grab has simple structure, low failure rate, convenient operation, and can accurately complete opening and closing action under various states. It is a kind of efficient tool that can load and unload sand, coal, mineral power, cement, fertilizer and other bulk cargo in various harsh environment.

Product Details:

1. Rated capacity: 5-25 ton

2. Volume: 1-6 m³

3. Dead weight: 2.5-10.5 ton

4. High tensile steel used throughout

5. Low cost of maintenance.

6. Using 3D Virtual Design to secure outward appearance

Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.

Specification:

Rated Capacity

Volume

Dead Weight

Wire Rope Dia.

A

B

C

D

E

T

T

mm

mm

mm

mm

mm

mm

5

1

2.5

19.5

2050

2774

2905

2865

1046

10

2.3

5

24

2690

3662

3835

3782

1381

16

4

6.5

28

3377

4615

4765

4832

1740

25

5

8

32

3647

4877

5146

5218

1879

25

6

10.5

36

3830

5120

5403

5479

1973

Single Rope Orange Peel Grab

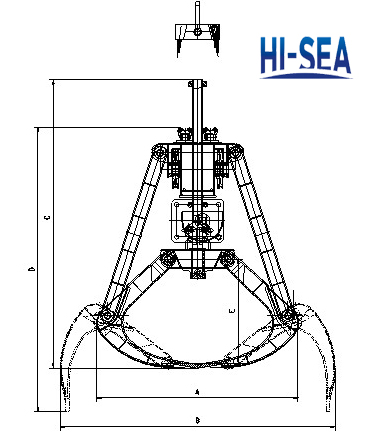

Sketch of the single rope orange peel grab
