Two ropes orange peel grab is a kind of effective tool to handle ore, steel scrap, nickel, garbage, wood chip and other bulk materials. It has simple structure, easy to operate, and can accurately complete opening and closing action under various states. It is suitable for the double drum crane to looading and unloading bullk material, and the lifting weight of it should be no more than 16 ton.

Product Details:

1. Rated Capacity: 3-16ton

2. Grab Volume: 0.5-8.2 m³

3. Dead Weight: 1.6-7.8 ton

4. Simple structure, easy to operation

5. Stable in working under any circumstances.

6. Using 3D Virtual Design to secure the product's quality and outward appearance.

Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.

Specification:

Rated Capacity	Volume	Dead Weight	Wire Rope Dia.	A	B	C	D	E
T	m³	T	mm	mm	mm	mm	mm	mm
3	1.4	1.6	14	2250	3182	2116	2591	1406
5	0.5	1.8	16	2000	2673	2243	2711	1035
5	1.2	2.1	19.5	2401	3268	2788	3355	1332
5	1.5	2.1	19.5	2480	3402	2852	3434	1401
5	2.5	2.5	19.5	2780	3551	2560	3142	1517
10	2.5	4.8	28	2886	3808	3167	3891	1591
10	3	5	28	2890	400	3299	3917	1703
10	5	5	28	3300	4310	3512	4222	1858
16	3.6	7.5	32	3100	3829	3612	4318	1636
16	5	7.5	32	3318	4636	4001	4588	2069
16	6	7.5	32	38000	4769	4082	5124	2246
16	7	7.5	32	4000	5119	4082	5124	2365
16	8.2	7.8	32	4200	5375	4310	5258	2398

Two Ropes Orange Peel Grab

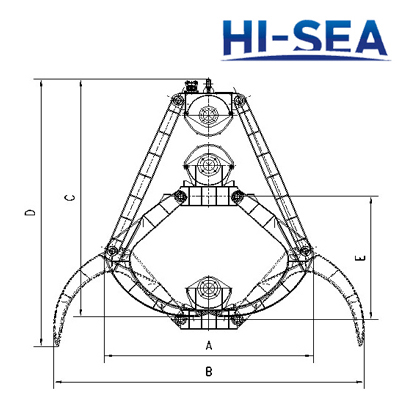

Sketch of the two ropes orange peel grab
