A0 Fire Proof Porthole for Ship

A0 Fire Proof Porthole for Ship

Made with steel, aluminum, copper or stainless steel, this product is a kind of fire resistant side scuttles. It can be installed by welded or bolted. This fire proof side scuttle is applicable for accommodations with required fire rating A0. It meets all the requirements of these certificates: CCS, ABS, DNV, GL etc. To satisfy customers’ demand, we can offer OEM service.

Drawing and specifications:

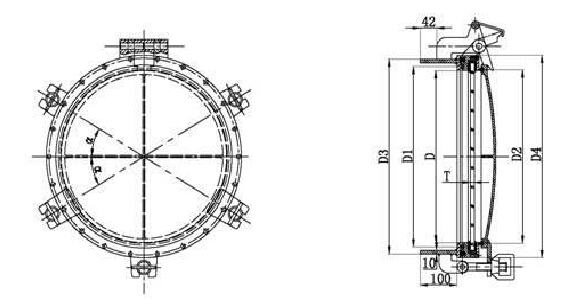

Drawing of A0 Fire Proof Porthole for Ship

Clear size D	D1	D2	D3	D4	α	Fasteners qty		Glass thickness	Opening size	Bolt qty
Clear size D	D1	D2	D3	D4	α	deadlight	frame	Glass thickness	Opening size	Bolt qty
200	222	204	250	280	45°	2	3	10	253	12
250	272	254	305	330	45°	2	3	10	308	14
300	322	304	360	380	31°	3	3	12	363	16
350	372	354	410	430	32°	3	3	12	413	18
400	422	404	460	480	31°	3	3	12	463	20

Identification example:

Welded A0 fire proof side scuttle, with clear size of 400mm----A0 fire proof side scuttle 400-W

Product showing:

A0 Fire Proof Porthole for Ship

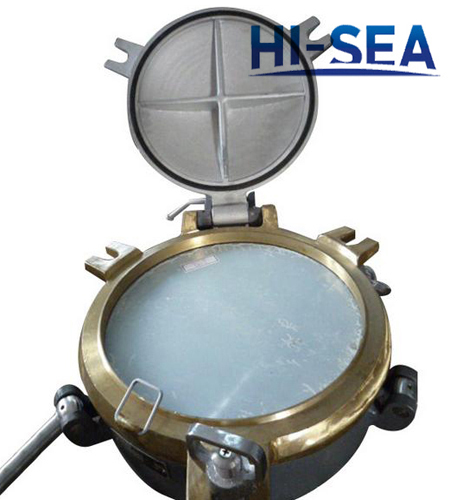

Yacht Welded A0 Fire Proof Porthole

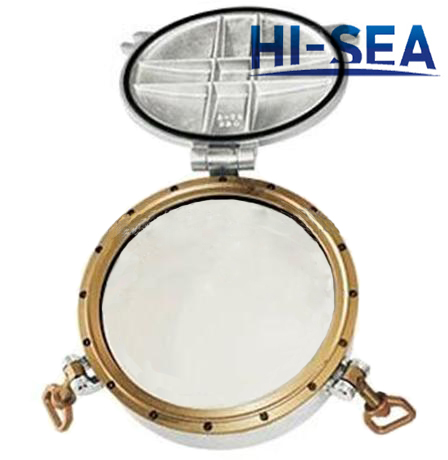

Marine Bolted A0 Fire Resistant Porthole

Certificates:

A0 Fire Proof Porthole for Ship
