H120 Fireproof Marine Window

H120 Fireproof Marine Window

Product features:

1. Frame material: steel

2. Meet requirements of IMO and SOLAS

3. Application: suitable for drilling platform and other marine equipments with fire rating of H120

4. Available certificates: GL, DNV, CCS, BV, ABS, LR, KR, etc.

mm

No	Nominal size W×H	Size of B. H. opening W1×H1×R1	External size W2×H2	Glass thickness		Size of glass W3×H3×R3
No	Nominal size W×H	Size of B. H. opening W1×H1×R1	External size W2×H2	Heavy	Medium	Size of glass W3×H3×R3
1	355×500	407×552×R76	515×660	10	8	415×560×R80
2	400×560	452×612×R76	560×720	12	8	460×620×R80
3	450×630	502×682×R126	610×790	12	8	510×690×R130
4	500×710	552×762×R126	660×870	15	10	560×770×R130
5	560×800	612×852×R126	720×960	15	10	620×860×R130
6	900×630	952×852×R126	1060×790	19	12	960×690×R130
7	1000×710	1252×852×R126	1160×870	19	12	1060×770×R130
8	1200×800	1252×852×R126	1360×960	19	15	1260×860×R130

Identification example:

H120 fire protection rectangular window with clear size of 900×630mm-----H120 fire protection rectangular window 900×630

Product showing:

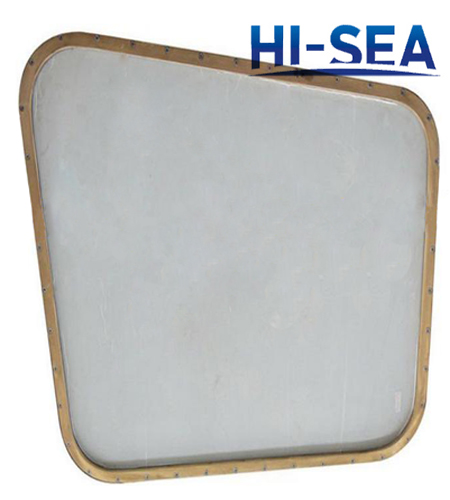

H120 Fireproof Window

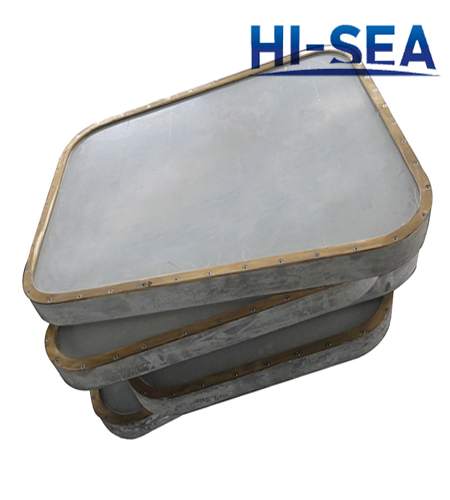

Marine H120 Fireproof Window
