Marine Aluminum Rectangular Window with Electrical Heating Glass
It is used as the window of superstructure above freeboard deck or deck house and meets the requirement of ISO3903-1993. Approved by CB/T3226-1995 standard, this ship ordinary rectangular window is made with aluminum and mounted with electrical heating glass which conforms to ISO 3434.
Product features:
1. Type: E-heavy type rectangular window; F-light type rectangular window
2. Characteristic of model:
Opening type |
Opening direction |
Installment type |
Opening |
Suitable code (nominal size) |
||||
Bolted |
Welded |
E |
F |
|||||
Opening type |
Inwards opening ¡°I¡± |
Side-hinged |
Left opening (L) |
B |
- |
ILB |
1~6 |
1~6 |
- |
W |
ILW |
||||||
Right opening(R) |
B |
- |
IRB |
|||||
- |
W |
IRW |
||||||
Top-hinged (T) |
B |
- |
ITB |
4~8 |
4~9 |
|||
- |
W |
ITW |
||||||
Outwards opening ¡°O¡± |
Side-hinged |
Left opening (L) |
B |
- |
OLB |
1~6 |
1~6 |
|
- |
W |
OLW |
||||||
Right opening(R) |
B |
- |
ORB |
|||||
- |
W |
ORW |
||||||
Top-hinged (T) |
|
- |
OTB |
4~8 |
4~8 |
|||
- |
W |
OTW |
||||||
Fixed type |
- |
B |
- |
NOB |
1~8 |
1~9 |
||
- |
W |
NOW |
3. Main size list(mm)
Series |
Type |
Code |
Nominal Size |
Opening Size |
Frame |
Opening |
||
Wxh |
W1xh1 |
r |
W2xh2 |
W3xh3 |
||||
H |
E, F |
1 |
300x425 |
352x477 |
76 |
348x473 |
430x555 |
ILB, ILW IRB, IRW ITB, ITW OLB, OLW ORB, ORW OTB, OTW NOB, NOW |
2 |
355x500 |
407x552 |
76 |
403x548 |
485x630 |
|||
3 |
400x560 |
452x612 |
76 |
448x608 |
530x690 |
|||
4 |
450x630 |
502x682 |
126 |
498x678 |
580x760 |
|||
5 |
500x710 |
552x762 |
126 |
548x758 |
630x840 |
|||
6 |
560x800 |
612x852 |
126 |
608x848 |
690x930 |
|||
7 |
900x630 |
952x682 |
126 |
948x678 |
1030x760 |
|||
8 |
1000x710 |
1052x762 |
126 |
1048x758 |
1130x840 |
|||
9 |
1100x800 |
1152x852 |
126 |
1148x848 |
1230x930 |
4. Glass Code of ¡°H¡± type rectangular window
Electrical Supply
Overheating protection device
Minimum power loading w/dw2
Current
Voltage (V)
Frequency (HZ)
7
12
17
Code
DC
24
-
G
7G01
12G01
17G01
S
7S01
12S01
17S01
110
-
G
7G02
12G02
17G02
S
7S02
12S02
17S02
220
-
G
7G03
12G03
17G03
S
7S03
12S03
17S03
AC single-phase
115
50
G
7G11
12G11
17G11
S
7S11
12S11
17S11
60
G
7G12
12G12
17G12
S
7S12
12S12
17S12
220
50
G
7G13
12G13
17G13
S
7S13
12S13
17S13
60
G
7G14
12G14
17G14
S
7S14
12S14
17S14
AC three-phase
115
50
G
7G31
12G31
17G31
S
7S31
12S31
17S31
60
G
7G32
12G32
17G32
S
7S32
12S32
17S32
220
50
G
7G33
12G33
17G33
S
7S33
12S33
17S33
60
G
7G34
12G34
17G34
S
7S34
12S34
17S34
220/380
50
G
7G35
12G35
17G35
S
7S35
12S35
17S35
60
G
7G36
12G36
17G36
S
7S36
12S36
17S36
440
50
G
7G37
12G37
17G37
S
7S37
12S37
17S37
60
G
7G38
12G38
17G38
S
7S38
12S38
17S38
Product picture:

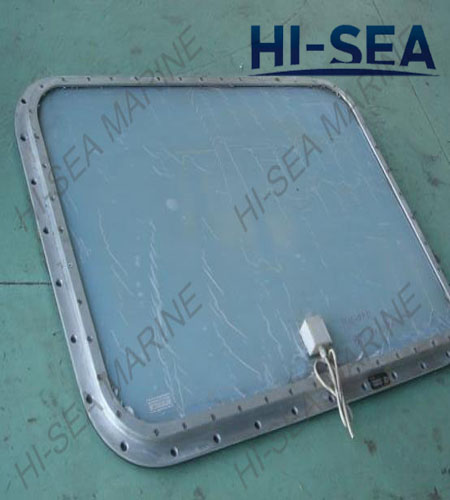

Yacht Aluminum Bolted Fixed Window with Electric Heated Glass
