Type-A Side Scuttle for Ship

Type-A Side Scuttle for Ship

Made with cooper and steel, this type ship side scuttle is used in the space below bulkhead deck or freeboard deck of marine ships, which are allowed to cut openings on the sides and required to be watertight and airtight. This side scuttle for ship is approved by GB/T14413-1993 and it also conforms to the related requirements of these certificates CCS, DNV, BV, LR, KR, NK, etc.

Combination of materials:

Type

Install type

Material

Material Code

Main frame

Glass holder and fastener

Deadlight

A

Bolted type

Copper(1)

Copper(1)

Steel(2)

112

Welding type

Steel(2)

Copper(1)

Steel(2)

212

Steel(2)

Steel(2)

Steel(2)

222


Opening and fastening model of deadlight:

Type-A Side Scuttle for Ship

Clear light size (D: mm)

200

250

300

350

400

450

Min. distance from side scuttle center to ceiling (H: mm)

Paw type (J)

350

400

450

500

540

580

Hook type(G)

Customized

Drawing and specifications:
Type-A Side Scuttle for Ship

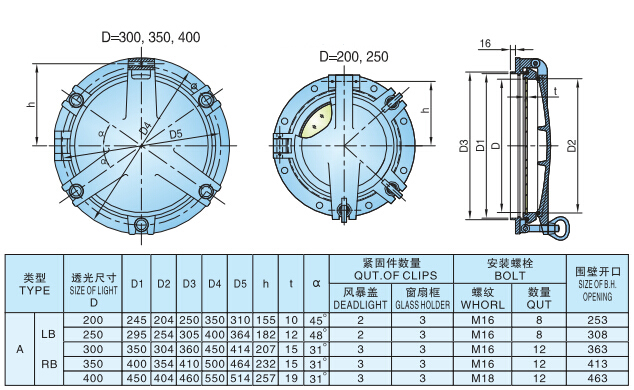

Drawing of Type-A Side Scuttle for Ship (A-LB/RB type)
Type-A Side Scuttle for Ship

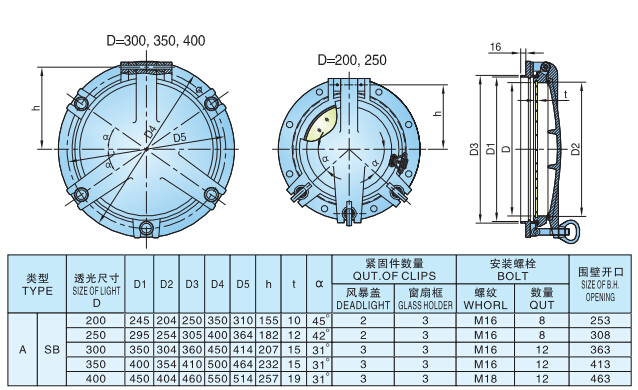

Drawing of Type-A Side Scuttle for Ship (A-SB type)
Type-A Side Scuttle for Ship

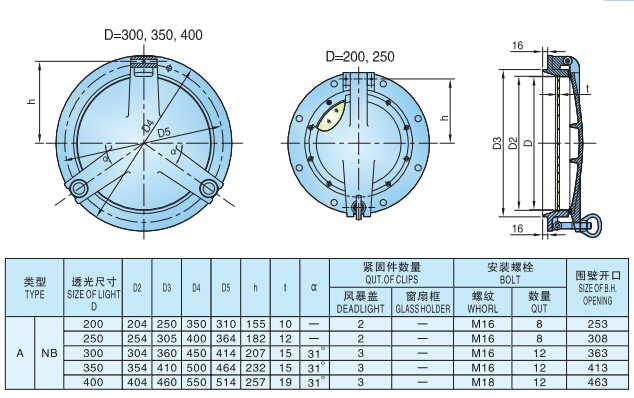

Drawing of Type-A Side Scuttle for Ship (A-NB type)
Type-A Side Scuttle for Ship

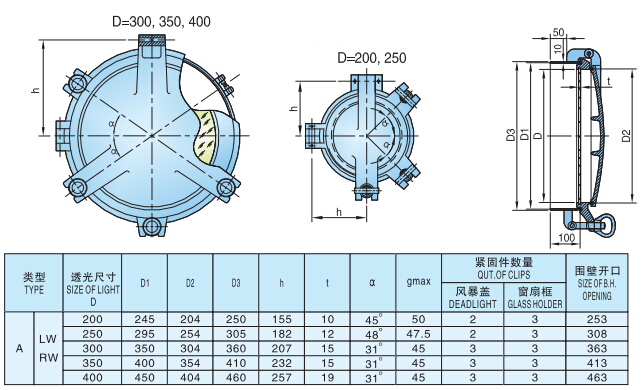

Drawing of Type-A Side Scuttle for Ship (A-LW/RW type)
Type-A Side Scuttle for Ship

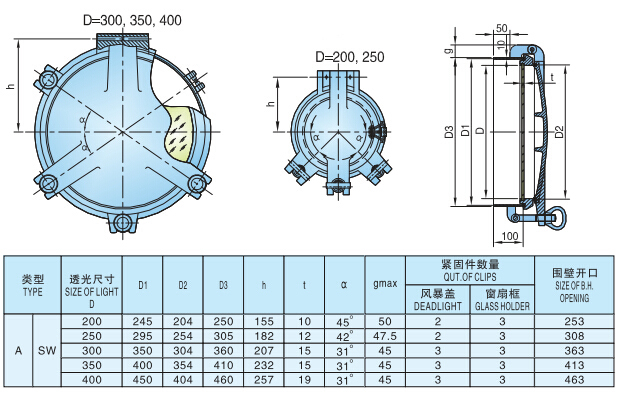

Drawing of Type-A Side Scuttle for Ship (A-SW type)

Type-A Side Scuttle for Ship

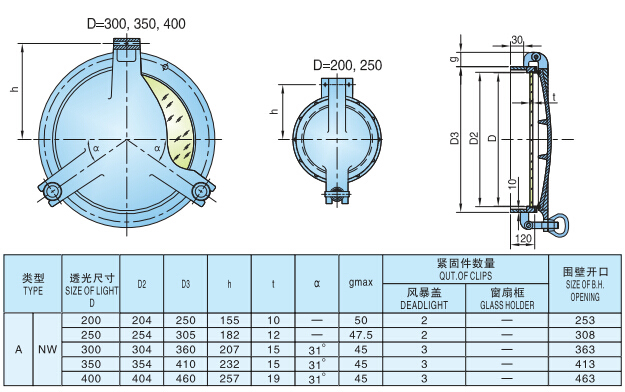

Drawing of Type-A Side Scuttle for Ship (A-NW type)

Product showing:

Type-A Side Scuttle for Ship

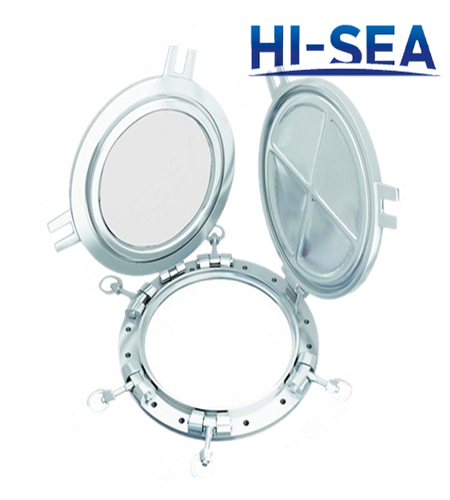

Yacht Stainless Steel Porthole Window

Type-A Side Scuttle for Ship

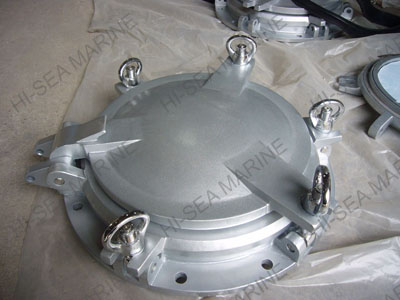

Marine Steel Porthole

Type-A Side Scuttle for Ship

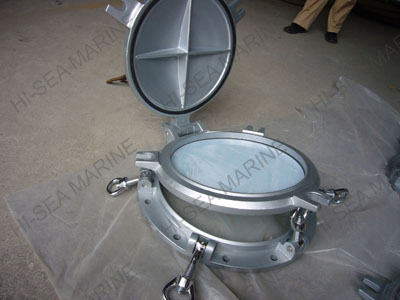

Steel Ship Porthole Window
