Marine Opening Type Rectangular Window

Marine Opening Type Rectangular Window

This type opening window is a kind of ship ordinary rectangular windows used for superstructure above freeboard deck and deck house. It is made of steel, aluminum and copper. Approved by GB/T5746-2001 standard, it meets the requirements of ISO3903-1993 and certified by these certificates like CCS, DNV, BV, LR, KR, NK, etc.

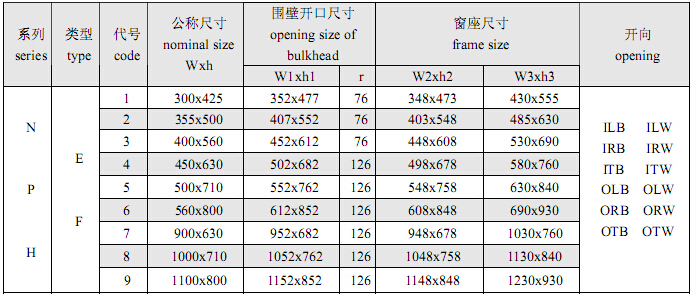

Drawing and specifications:

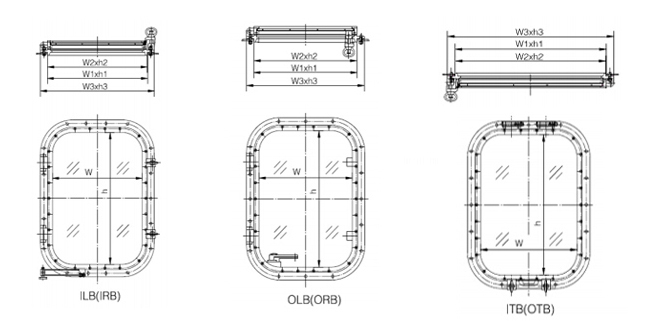

Drawing of Bolted Opening Window

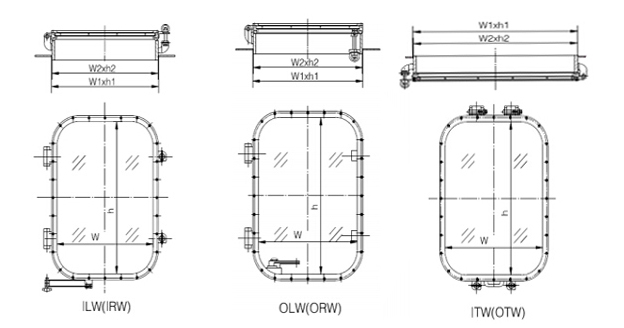

Drawing of Welded Opening Window

Product displaying:

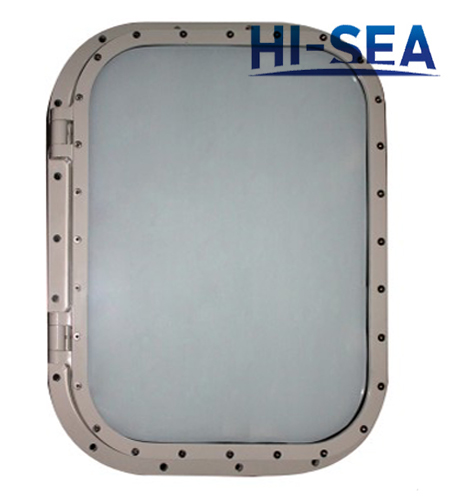

Aluminum Bolted Opening Window

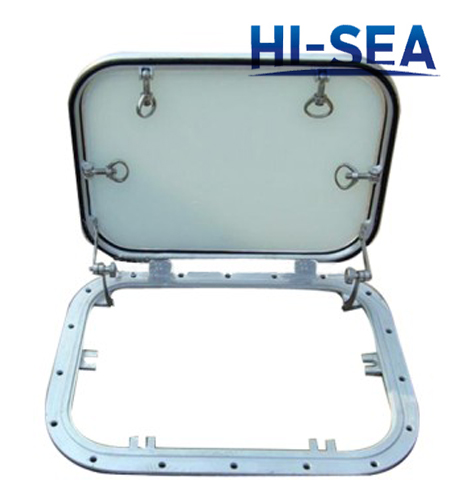

Aluminum Opening Rectangular Window with Storm Cover

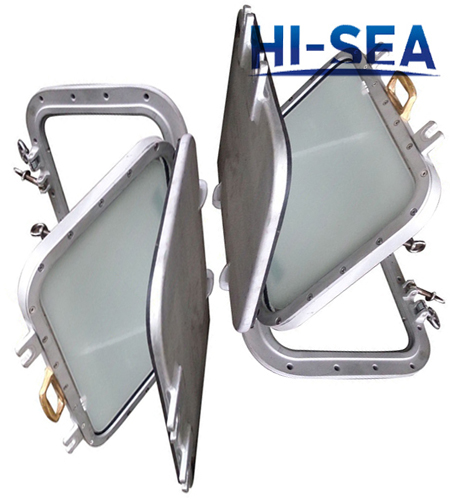

Aluminum Inward Side-hinged Rectangular Window with Deadlight

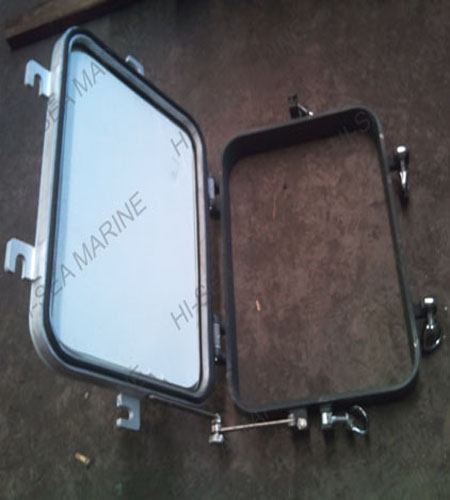

Steel Welded Opening Window

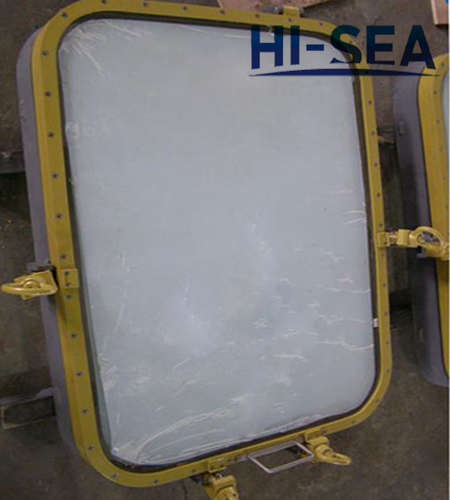

Brass Opening Rectangular Window for Ship

Certificates:
