Marine Funnel Closeable Shutter

Marine Funnel Closeable Shutter

Made with steel or aluminum, this ship’s closeable shutter is used for funnel to keep sun off and ventilate. This marine funnel shutter produced according to international standard such as ISO, GB, CB, CB/T, and JIS etc. It is approved by CB*3132-83 and certificates about the product are Chinese CCS, English LR, American ABS, French BV, Norwegian DNV, Japanese NK, Korean KR. We’d like to design and manufacture other special structures to meet customers’ demand.

Drawing and specifications:

Drawing of Marine Funnel Closeable Shutter

Code	Material of shutter
N	Steel
L	Aluminum

Nominal size	Size of opening	Shutter		Weight（kg）
B×L	B1×L1	L×W×T	QTY	Steel（N）	Aluminum（L）
400×580	416×680	396×160×4	5	28.6	19.5
500×460	516×560	496×160×4	4	28.3	18.9
500×700	516×800		6	37.0	20.7
500×940	516×1040		8	45.6	25.3
500×1180	516×1280		10	54.2	30.8
500×1420	516×1520		12	62.9	37.2

Product displaying:

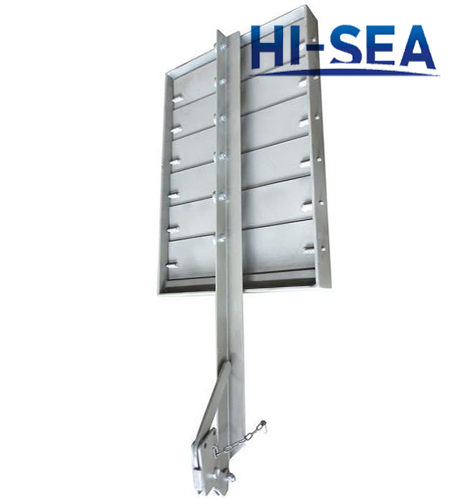

Ship Aluminum Funnel Shutter

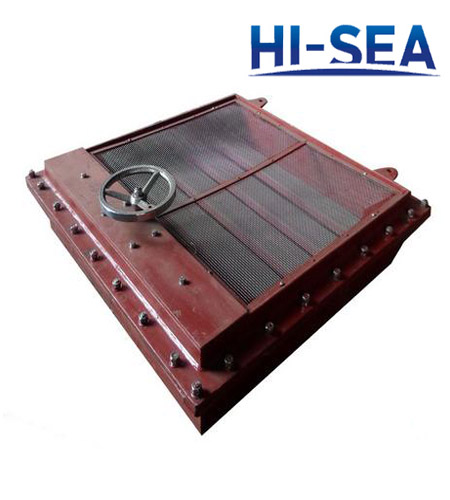

Marine Stainless Steel Watertight Shutter

Marine Funnel Closeable Shutter

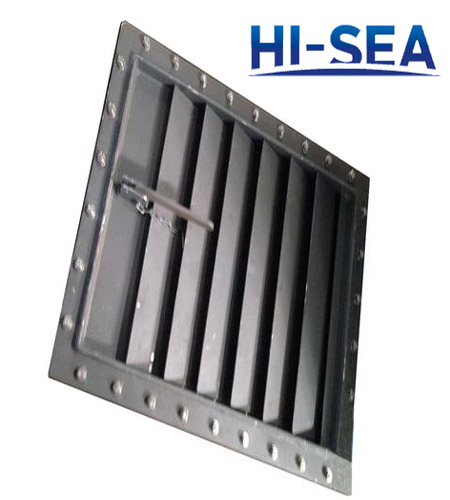

Steel Chimney Closeable Shutter for Ship

Marine Funnel Closeable Shutter

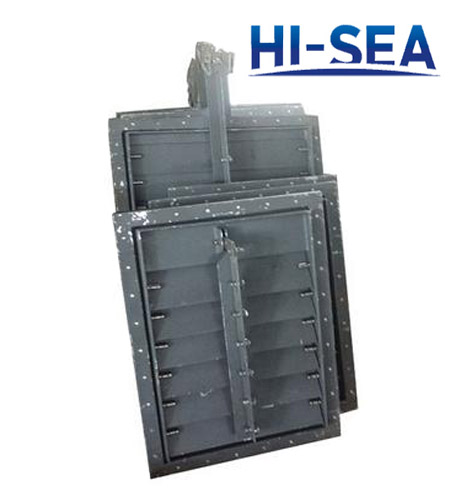

Marine Steel Ventilation Shutter
