Bolted Type Aluminum Porthole

Bolted Type Aluminum Porthole

Product description:

1. Standard : GB/T14413-93

2. Material: aluminum

3. With/without deadlight, Watertight and gastight

4. Opening: fixed bolted

5. Used for sea-going ship and warships also could used for inland ship

6. Main types: medium type and light type

7. CCS, ABS, BV, DNV certificates is available

Name

Type

Size of clear

(mm)

Opening way

Installation

Code of material made up

Opening of the deadlight

Glass

Application

Opening

Non-opening

Bolted

Medium

B

200

250

300

350

400

450

Left hand (L)

Right hand (R)

Total hinged

(S)

Fixed

(N)

Bolted

(B)

333

Hook type

(G)

Paw type

(J)

Clear glass (Y1)

Ground glass (Y2)

above bulkhead deck or free board deck of passenger ships, or the ends of superstructure

Light

C

200

250

300

350

400

450

Left hand

(L)

Right hand (R)

Fixed

(N)

220

330

110

---

above bulkhead deck or free board deck of passenger ships, or the ends of superstructure

Drawing and Specifications:

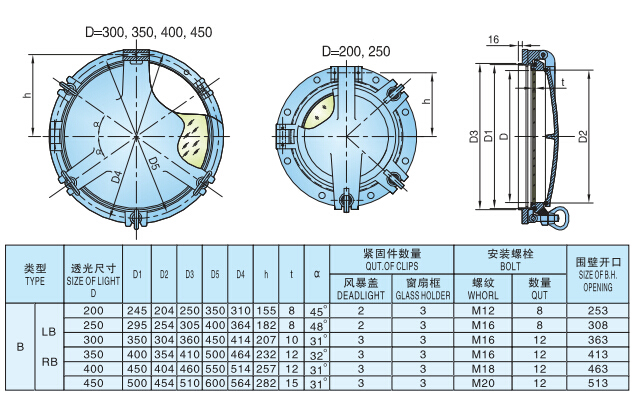

Drawing of Bolted Type Aluminum Porthole(B-LB/RB type)

Bolted Type Aluminum Porthole

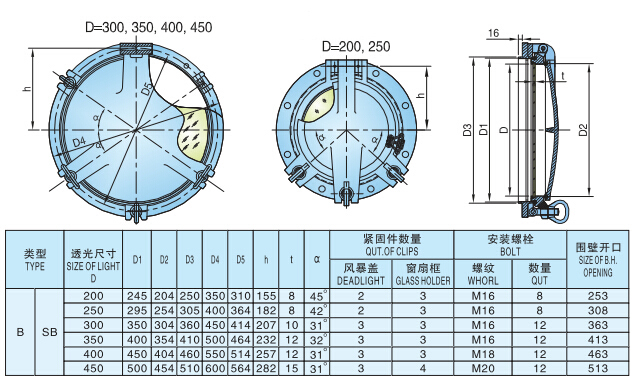

Drawing of Bolted Type Aluminum Porthole(B-SB type)

Bolted Type Aluminum Porthole

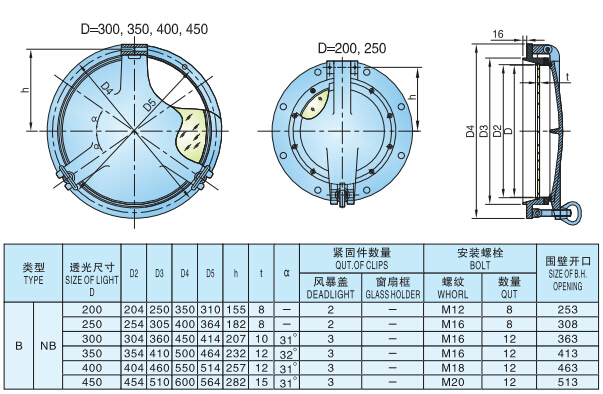

Drawing of Bolted Type Aluminum Porthole(B-NB type)

Bolted Type Aluminum Porthole

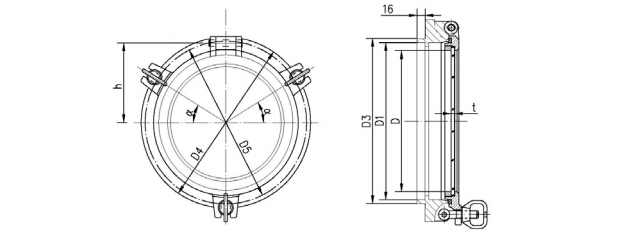

Drawing of Bolted Type Aluminum Porthole(C-LB/RB)

Bolted Type Aluminum Porthole

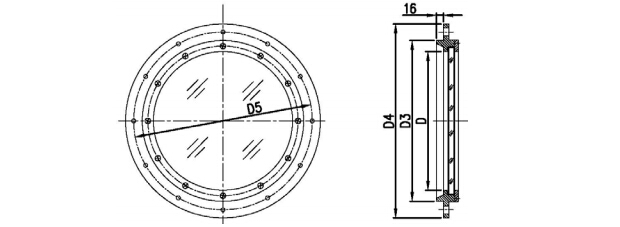

Drawing of Bolted Type Aluminum Porthole(C-NB)

Product images:

Bolted Type Aluminum Porthole

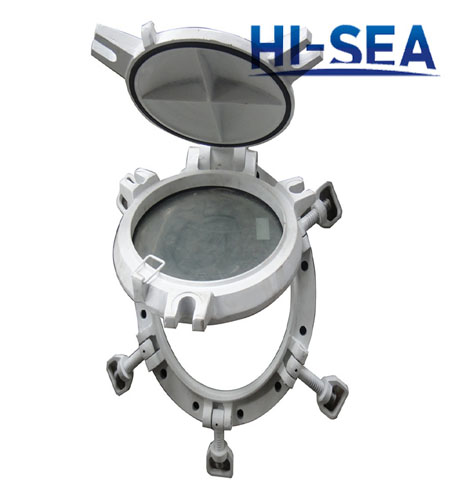

Aluminum Bolted Type Side Scuttle

Bolted Type Aluminum Porthole

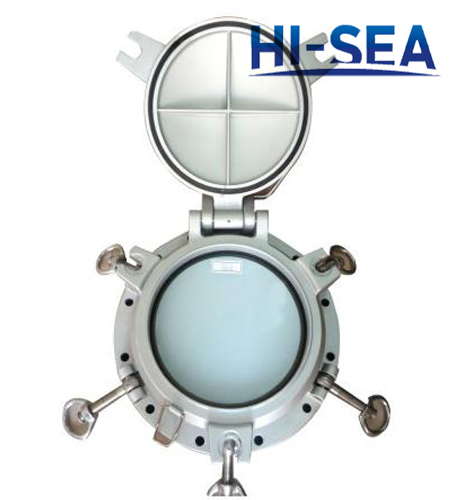

Aluminum Porthole Window for Boat

Bolted Type Aluminum Porthole

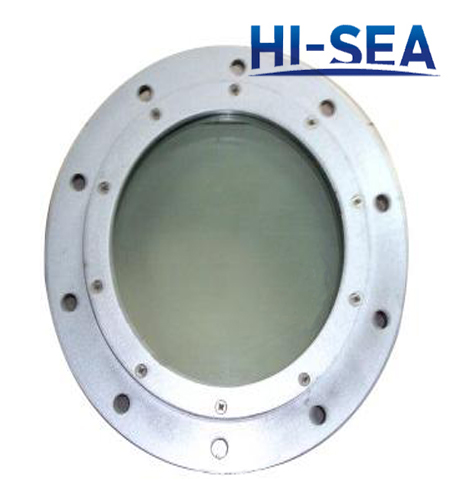

Aluminum Side Scuttle without Deadlight
