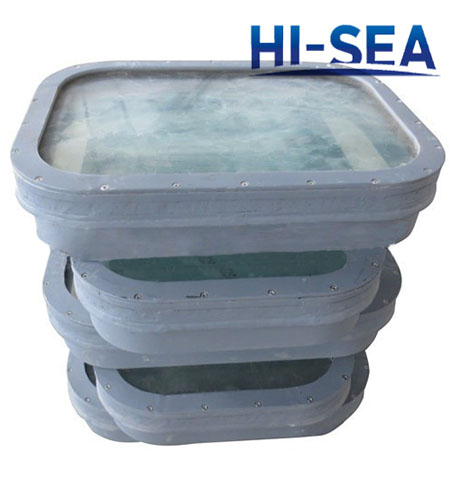

A60 Fireproof Rectangular Window for Ship

A60 Fireproof Rectangular Window for Ship

This fire resistant widow is made with aluminum or steel, it is used for oil tanker, drilling platform, chemical vessel and oil area tug which has a less than 60℃ flash point. We can supply CCS, DNV, BV, LR, KR, and NK certificates about the fire proof fixed window. Besides, OEM service is available.

Drawing and specifications:

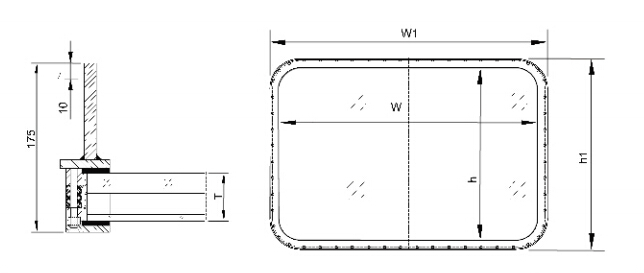

Drawing of A60 Fireproof Rectangular Window for Ship

No.	Nominal size w×h		External size W1×h1		Glass thickness	Fireproof rank
1	300×425	R50	390×515	R95	45	A-60
2	355×500		445×590
3	400×560		490×650
4	450×630	R100	540×720	R145
5	500×700		590×800
6	560×800		650×890
7	900×630		990×720
8	1000×710		1090×800
9	1100×800		1190×890
10	1200×800		1290×890

Identification example:

Clear size is 400×560mm for A-60 class fireproof rectangular window----fireproof rectangular window A60-400×560

Product images:

A60 Fireproof Rectangular Window for Ship

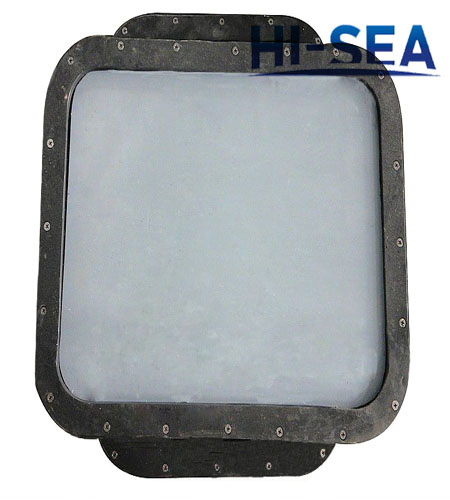

Yacht A60 Welded Fire Proof Rectangular Window

A60 Fireproof Rectangular Window for Ship

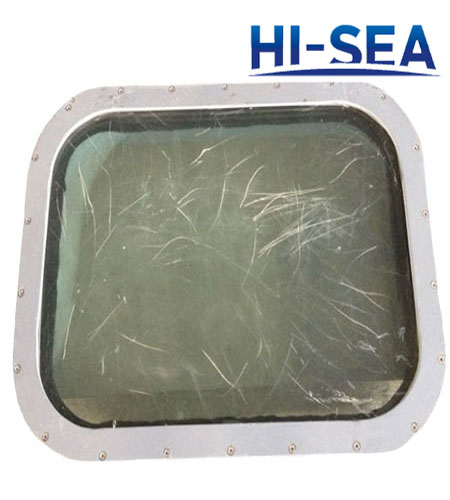

Marine Steel Fixed Fire Resistant Window

Certificates:

A60 Fireproof Rectangular Window for Ship
