Azimuth Thruster with Tube
[Search Related Products]Azimuth Thruster with Tube
Azimuth thruster with tube is a kind of Z-type propulsion equipment combined with ducted propeller and steering gear function. The part under water can steer by 360 degree free rotating forming all-directional propulsive force. The device combines the highly efficiency of tube propellers and flexibility of azimuth thruster. It is mainly used for various engineering ships with high flexibility or with dynamic positioning demand, such as harbor tugs, undersea cabling working ships, floating crane barges, marine platform and platform supply ships etc. The power range of the products is from 60HP to 3500HP.
Specification:
Model |
Power Rating (HP) |
Speed Rating (r/min) |
Ratio |
Dia of propeller (mm) |
Matching Diesel Engine |
Weight (kg) |
HSRP-W300 |
300 |
750 |
2.58 |
1100 |
6160 |
2300 |
HSRP-W400 |
400 |
1800 |
2.17 |
1150 |
NTA855-M350 |
2500 |
HSRP-W600 |
600 |
1800 |
3.34 |
1280 |
KTA19-M600 |
4200 |
HSRP-W1000 |
1000 |
1000 |
2.66 |
1600 |
XCW6200ZC-7 |
6700 |
HSRP-W1200 |
1200 |
1800 |
3.05 |
1750 |
KTA38-M1200 |
7000 |
HSRP-W1400 |
1400 |
1800 |
3.24 |
1850 |
KTA38-M2 |
8000 |
HSRP-W1600 |
1600 |
1000 |
3.23 |
2000 |
CW12V200ZC |
14500 |
HSRP-W1800 |
1800 |
1000 |
2.51 |
2100 |
XCW12V200ZC |
18000 |
HSRP-W2000 |
2000 |
750 |
2.54 |
2200 |
6250 |
21000 |
HSRP-W2400 |
2400 |
825 |
2.997 |
2480 |
LC8250ZLC-2 |
23000 |
HSRP-W2600 |
2600 |
1000 |
3.12 |
2500 |
8250 |
23500 |
HSRP-W3000 |
3000 |
775 |
3.27 |
2600 |
9L28/32 |
26000 |
HSRP-W3200 |
3200 |
800 |
3.25 |
2700 |
7L27/38 |
27500 |

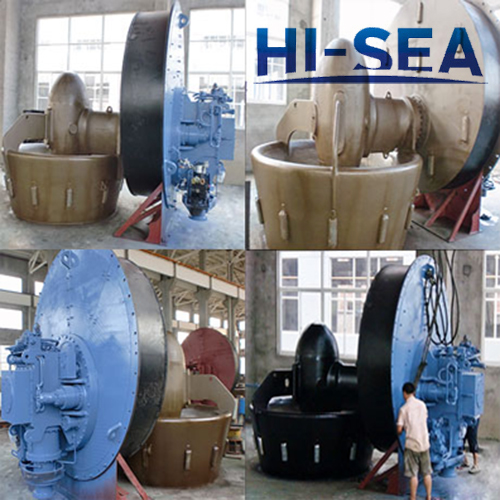

Product showing:
Azimuth Thruster with Tube
Azimuth Thruster with Tube
