Deck Type Rudder Propeller

Deck Type Rudder Propeller

Deck installation is a complete propulsion package including diesel engine, rudder propeller and other. It is a reliable and compact propulsion plant. The power of the diesel engine is transmitted to the rudder propeller through an elastic coupling, a hydraulic clutch and a universal shaft. The chassis is constructed with a hydraulic system, an electric control box, daily fuel tank and so on. Installation is fast and simple because they are essentially self-contained. Only to connect the minimum hoses and cables can make it available to obtain thrust. The desk installation unit merely has to be mounted and bolted onto a foundation of deck. Rudder propeller is mounted at the rear chassis.

The rudder propeller can be mechanically or hydraulically raised or lowered in vertical direction by means of a depth adjustment facility. This serves to ensure maximum propeller thrust when the draft changes.

For maintenance purposes, the rudder propeller can be pivoted out of water to the rear hydraulically or mechanically by hand.

Characteristics:

1. high efficiency and reliability

2. less vibration and noise

3. strong propulsive force

4. hydraulic motor-driven or electric motor-driven

5. drive power: 20kw-4500kw

6. propeller type: FPP & CPP

7. propeller diameter: 500mm-4200mm

8. Application: tug boat, harbor workboat, service ship, ferry and engineering ship

9. Certificates: ABS, BV, CCS, DNV, NK, KR, GL, LR, etc.

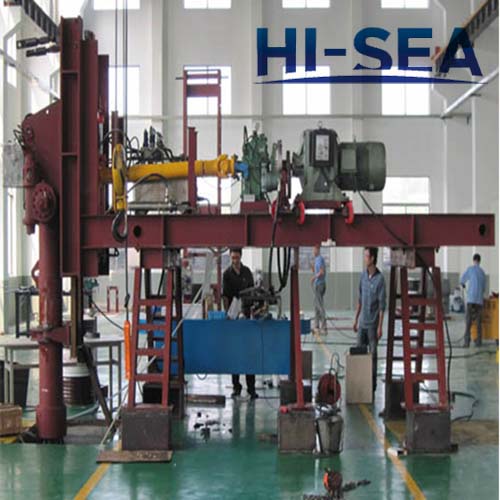

Product image:

Deck Installation Rudder Propeller
