Deck Combination Azimuth Thruster

Deck Combination Azimuth Thruster

Deck combination azimuth thruster is a kind of marine propulsion unit which combined azimuth thruster and diesel engine. It has the advantages of compact structure, high mobility, easy-installation and others. The whole set can be installed directly on the deck base. The set is hooded in the container. The vertical height is adjusted by mechanic equipments or hydraulic equipments, making ships adapt to deeper draft and give full thrust. Therefore, the ships can better satisfy the propellers immersion depth need when full load or no load. The combination design with contra-rotating propellers can further shorten the diameter of propellers and save ballast water treatment cost and ballast water adjustment time.

Drawing and specification:

Deck Combination Azimuth Thruster

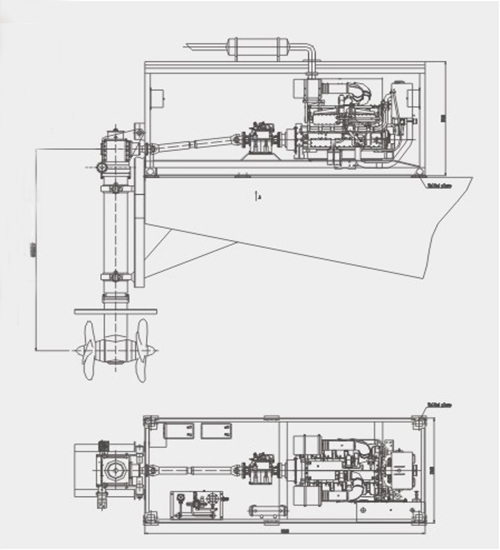

Installation Drawing of Deck Combination Azimuth Thruster

Model

Power Rating

(HP)

Speed Rating

(r/min)

Dia of propeller

(mm)

Clutch complete

Matching

Diesel Engine

HSDRP120

120

2200

860

HCL100F

6BT5.9-M120

HSDRP300

300

1800

1080

HCL250F

NT855-M300/WD615.64C

HSDRP600

600

1800

1300

HCL320F

KTA19-M600/8 M26.2

HSDRP900

900

1800

1680

HCL600F

KTA38-M900/12 M26.2

HSDRP1200

1200

1800

1750

HCL800F

KTA38-M1200/12 M26.2

HSDRP1600

1600

1800

1850

HCL800F

KTA50-M2

HSDRP2000

2000

1800

2050

HCL1000F

KTA50-M2

Product picture:

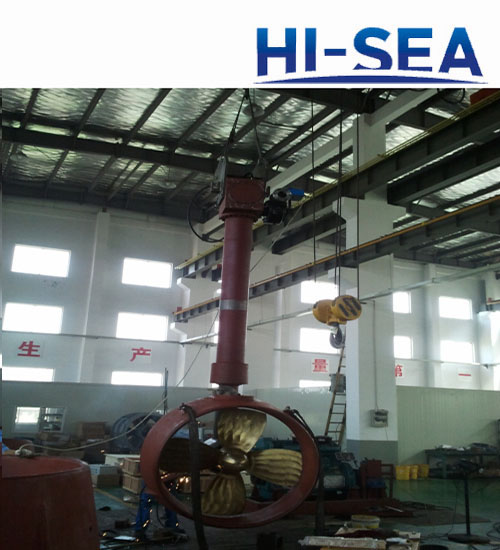

Deck Combination Azimuth Thruster

Deck Combination Azimuth Thruster

Deck Combination Azimuth Thruster

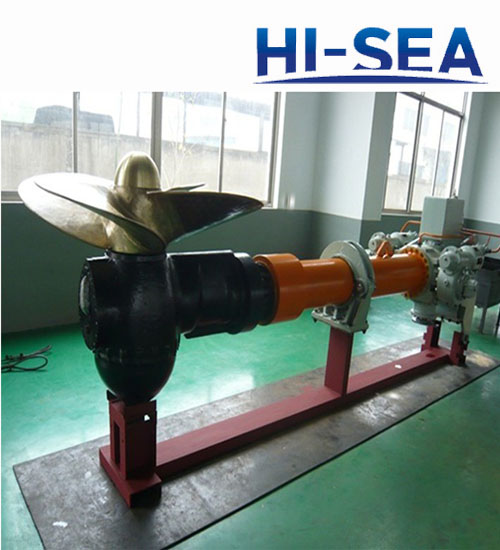

Marine Deck Azimuth Thruster
