Marine Rudder Propeller
The rudder propeller can be mechanically or hydraulically raised or lowered in vertical direction by means of a depth adjustment facility. It serves to ensure maximum propeller thrust at all vessel draughts by maintaining the correct propeller immersion. For maintenance purposes, the rudder thruster can be pivoted out of the water to the rear hydraulically or mechanically by hand. We can supply relevant certificates such as ABS, BV, DNV, NK, LR, GL, CCS etc. according to client¡¯s request.
Features:
1. Material: alloy
2. Blades: 4
3. Drive power: hydraulic or electric
4. RPM speed: 900--1750RPM
5. Propeller diameter: 350¨C4000mm
6. Certification: ISO90001:2000
7. Certificates: ABS, BV, CCS, DNV, NK, KR, GL, RINA, etc.

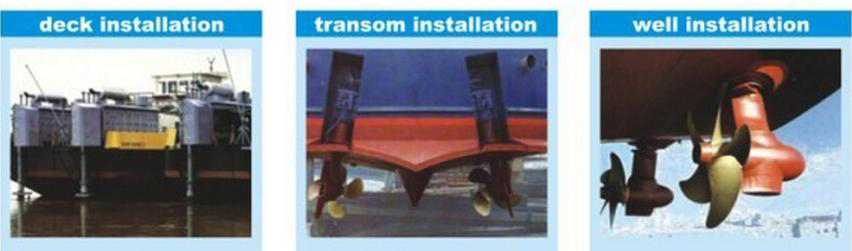

Installation Type of Rudder Propeller
Product parameters:
Type |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
MAX Input Power |
45 |
100 |
210 |
300 |
255 |
350 |
480 |
490 |
620 |
920 |
1250 |
1650 |
|
61 |
135 |
285 |
400 |
347 |
476 |
650 |
666 |
843 |
1250 |
1700 |
2244 |
||
MAX Input Torque £¨N. m£© |
200 |
420 |
850 |
1675 |
2500 |
2050 |
2800 |
5200 |
3300 |
5423 |
14740 |
19500 |
|
MAX Input Speed (r/min) |
2300 |
2500 |
2350 |
2000 |
1000 |
1800 |
1800 |
1000 |
1800 |
1800 |
1000 |
1000 |
|
Reduction Ratio |
i |
1.93 |
2.5 |
2.68 |
3.46 |
2.37 |
3.34 |
3.96 |
2.20 |
4.04 |
5.059 |
3.257 |
3.58 |
upper |
1.7 |
1.64 |
1.65 |
1.53 |
1.045 |
1.63 |
1.63 |
0.9032 |
1.53 |
1.647 |
1.286 |
1.286 |
|
lower |
1.13 |
1.52 |
1.62 |
2.26 |
2.26 |
2.05 |
2.43 |
2.43 |
2.64 |
3.071 |
2.533 |
2.79 |
|
Propeller Diameter (mm) |
MAX |
500 |
800 |
950 |
1150 |
1150 |
1350 |
1550 |
1550 |
1500 |
1800 |
2100 |
2300 |
Min |
500 |
700 |
900 |
900 |
1100 |
1250 |
1250 |
1600 |
1700 |
1700 |
|||
PAL Length £¨mm£© |
MAX |
2250 |
2800 |
2800 |
4250 |
4400 |
4750 |
4750 |
4750 |
5000 |
|||
Min |
350 |
875 |
980 |
1400 |
1400 |
1750 |
1750 |
2000 |
1700 |
2600 |
2800 |
3000 |
|
Weight (kg) |
65 |
190 |
300 |
1370 |
2000 |
2100 |
3580 |
2800 |
5850 |
11000 |
16500 |
||
Per 100mm extension Weight (kg) |
8 |
9 |
20.4 |
40 |
40 |
40 |
40 |
40 |
45 |

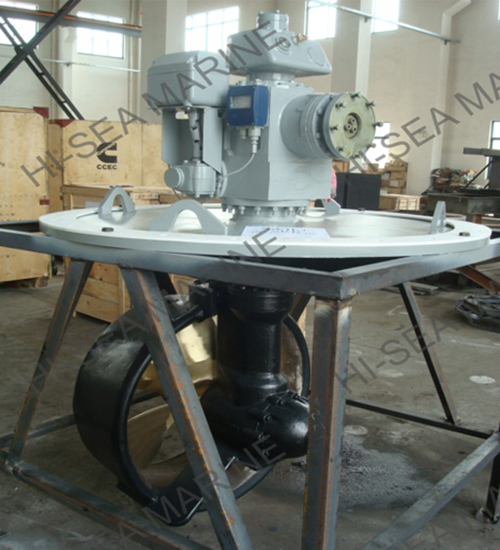

Picture displaying:
Marine Rudder Propeller
