Electric Azimuth Thruster

Electric Azimuth Thruster

Azimuth thruster can be used as the ship's main and auxiliary propulsion and dynamic positioning, commonly used in tugs, pusher craft, ferries and barges. Electric azimuth thruster is driven by electric motor. It is arranged in Z-drive or L-drive. It transforms reliably the power of electric motor into the best thrust and thus improve propulsion efficiency and maneuverability. If you are interested in our products, please be free to contact us, we will reply you timely.

Features:

1. Material: alloy steel, bronze

2. Input power: 150¡«4500KW

3. Input speed: 500¡«1800rpm

4. Blade diameter: 1100¡«4500mm

5. Clutch: built-in hydraulic or air pressure controlled clutch, external hydraulic clutch with reduction gear

6. Steering type: hydraulic or electric motor drive

Advantages:

1. Propeller blade of low RPM and large diameter is matched with the high efficiency nozzle to improve the thruster efficiency and lower down the noise and vibration

2. Modularized rudder propeller structure simplifies the system and makes the components easier to interchange and maintain

3. Bevel gears are designed with high precision, strong loading capacity and long service life

4. The accurate remote system is simple to operate, sensitive to respond and reliable during navigation

5. Space saving, environment friendly, low noise

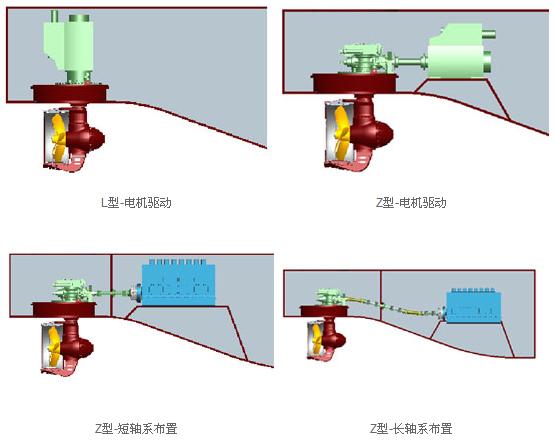

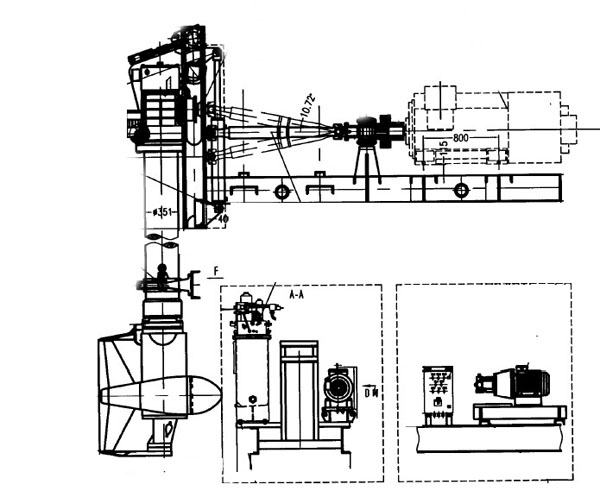

Drawing and drive types:

Electric Azimuth Thruster

Electric Azimuth Thruster

Product parameters:

Model

Max. input power

Input speed

Propeller dia.

¦µD

PAL

A

B

C

E

FPP/CPP

kW

PS

rpm

mm

mm

mm

mm

mm

mm

HS-RP60

441

600

1000-1800

1100-1350

2000

1450

620

2000

600

HS-RP 80

588

800

1000-1800

1350-1500

2250

1690

725

2300

700

HS-RP 00

736

1000

1000-1800

1400-1600

2300

1882

852

2560

610

HS-RP140

1030

1400

750-1500

1600-1800

2700

2290

965

2900

1080

HS-RP180

1324

1800

750-1500

1800-2100

2800

2480

978

3300

1250

HS-RP200

1471

2000

750-1500

2100-2300

2900

2550

1664

3400

1300

HS-RP220

1618

2200

750-1500

2100-2300

2900

2600

1664

3500

1300

HS-RP250

1839

2500

750-1500

2400-2600

3000

2864

1650

4000

1250

HS-RP280

2059

2800

750-1500

2400-2600

3600

3060

1700

4200

1250

HS-RP300

2207

3000

750-1500

2600-2800

3700

3294

1900

4500

1207

HS-RP350

2574

3500

600-1000

2600-2800

3700

3294

1900

4500

1207

HS-RP370

2721

3700

600-1000

2800-3000

3800

3194

1900

4500

1250

HS-RP400

2942

4000

600-1000

3000-3200

4000

3415

1265

4500

1250

HS-RP450

3310

4500

600-1000

3200-3500

4200

3600

1650

4800

1500

HS-RP500

3678

5000

600-1000

3500-3800

4300

4470

1900

5200

150

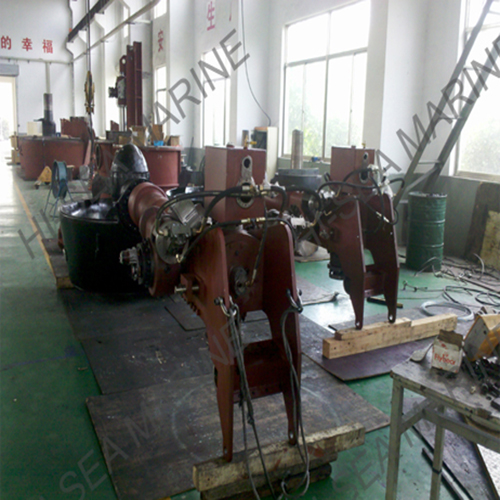

Product showing:

Electric Azimuth Thruster

Electric Azimuth Thruster
