Marine Azimuth Thruster

Marine Azimuth Thruster

Reliability is the top priority for azimuth thruster design. Our azimuth thrusters run well on various kinds of ships. They can be mounted on tug boat, harbor workboat, service ship, ferry, and engineering ship. There are two kinds of drive type: Z-drive and L-drive. Our azimuth thrusters can be driven be electric motor or hydraulic motor. They are approved by CCS, BV, DNV, ABS, NK, KR, GL, RINA, etc. Any question about our azimuth thruster, please be free to contact us, we will answer you timely.

Characteristics:

1. Combined design propeller and nozzle together, enlarge diameter of propeller and low down its rotate speed, which keep high propulsion efficiency and enhance thrust force.

2. Carefully design the rudder-rod profile improve propulsion efficiency and reduce vibration, especially reduce steering torque.

3. Adopt high-strength gear and bearing of high speed, seals and pipeline also being carefully design, which improve the system¡¯s reliability and longevity.

4. The steering mechanism can be driven by electrical motor or hydraulic motor.

5. According to the difference of operation condition, it can be divided into three kinds: FPP with nozzle, CPP with nozzle, without nozzle.

6. Azimuth thruster can be retractable according customer¡¯s requirement.

Main parameters:

Type

Input power(kW)

Normal Input speed(rpm)

Normal Propeller §¶(mm)

Max. bollard pull (T)

MRP50

90-147

1500-2500

700/800

1.8

MRP90

164-240

1500-2350

800/900

2.8

MRP100

250-358

1200-2350

1000/1100/1200

6.2

MRP110

372-480

1200-2350

1300/1400

8.1

MRP130

522-675

830-1800

1500/1600

11.5

MRP165

700-970

830-1800

1700/1800

16.5

MRP185

1030-1380

830-1500

2000/2100

23.1

MRP200

1425-1780

750-1500

2200/2300

28.8

MRP225

1920-2250

550-1200

2500/2600

36.4

MRP245

2300-2600

550-1200

2700

40.1

MRP300

2750-3400

550-1200

3300/3500

55.1

Product displaying:

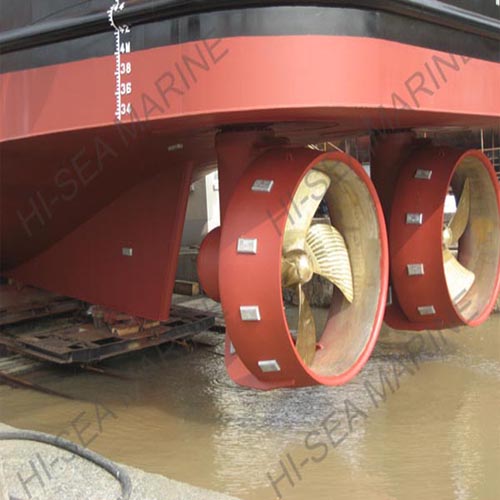

Marine Azimuth Thruster

Marine Azimuth Thruster
