Deck Mounted Azimuth Thruster

Deck Mounted Azimuth Thruster

Deck installation is a complete propulsion package .It is a reliable and compact propulsion plant. The chassis carries the totally enclose propulsion system. The power of the diesel engine is transmitted to the rudder propeller through an elastic coupling, a hydraulic clutch and a universal shaft. The chassis is constructed with a hydraulic system, an electric control box, daily fuel tank and so on system units. Installation is fast and simple because they are essentially self-contained. Only to connect the minimum hoses and marine electrical cable can make it available to obtain thrust. The deck installation unit merely has to be mounted and bolted onto a foundation of deck. Rudder propeller is mounted at the rear chassis.

Features:

1. All components are installed on the deck foundation and are protected with a solid box

2. The prime mover is diesel engine, and the torque is transmitted via clutch and universal shaft

3. The electric control system and emergency alarming system are integrated into one control cabinet

4. The lifting and tilting of the azimuth thruster is realized via the hydraulic system

5. Easy to mount

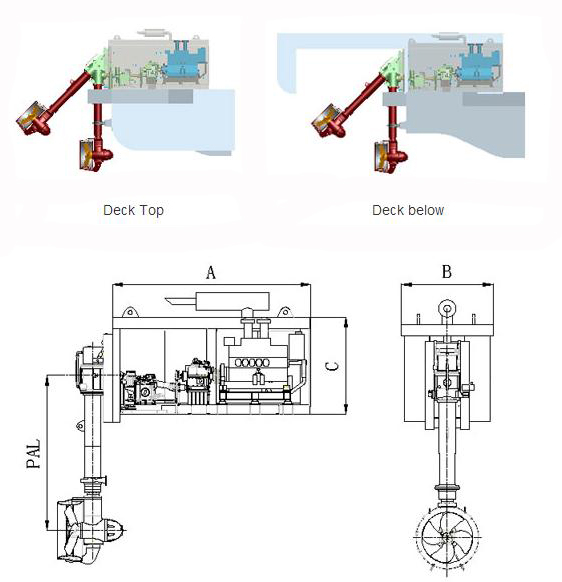

Installation Types:

Deck Mounted Azimuth Thruster

Technique data:

Model

HS-RP60

HS-RP100

HS-RP180

HS-RP200

HS-RP330

HS-RP560

Max. input power (KW/HP)

130/180

260/360

350/480

410/560

620/850

735/1000

Rated input speed (r/min)

2500

2100

1800/2000

1800/2100

1800

1800

Propeller diameter (mm)

700

850

1050

1100

1400

1600

Dimension

(L x W x H cm)

3250x1400x1700

4100กม1800กม2000

4500กม1800กม2300

4300กม1800กม2300

5500กม2000กม2700

6400กม2500กม3300

Weight (kg)

2500

5000

7000

8000

11500

15000

Max. PAL value

3300

3500

4900

5000

4800

7100

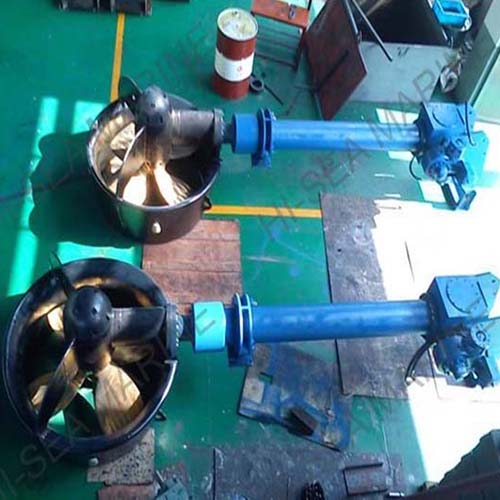

Product showing:

Deck Mounted Azimuth Thruster

Deck Mounted Azimuth Thruster
