Hydraulic Rudder Propeller

Hydraulic Rudder Propeller:

Propulsion units are self-contained thruster packages for main propulsion and positioning of barges, platforms and river craft. Hydraulic Rudder Propeller available with diesel or electric hydraulic drives with power ratings from 50HP to 500HP. Conversion from a simple barge or unpowered vessel can be done in as little as a few hours to less than a week without modifying the hull. The hydraulic drive is especially suited for shallow, brown water applications where debris in the water or shallow bottoms can be a problem.

The mini-skid and transom-mount styles separate the engine and transmission unit from the lower unit and allow remote mounting of the engine, either above or below deck in any convenient space. Short runs can be made with flexible hydraulic hose while long runs can be piped with standard marine hydraulic plumbing options.

Product parameters:

Model

Power Rating

(HP)

Diameter of propeller

(mm)

Thrust

(t)

HP50

0-50

620

0-0.7

HP100

50-100

830

1-1.4

HP200

100-200

950

1.5-3.2

HP300

200-300

1000

3.4-4.4

HP400

300-400

1180

4.7-6.2

HP500

400-500

1300

6.5-7.7

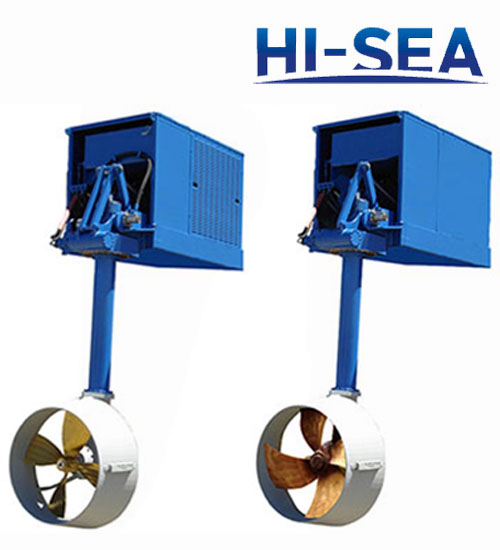

Product showing:

Hydraulic Rudder Propeller

Hydraulic Rudder Propeller
