Camlock coupling A type
Type 'A', has a male camlock end and a female pipe thread (BSP or NPT thread) of the same size. Type A adapters are generally used with the same size Type D couplers, however, Type B and C couplers are compatible, as well as the DC (Dust Cap).
Product detail:
Place of Origin: Chongqing, China (Mainland)
Brand Name: HI-SEA
Material: Aluminum/stainless steel/PP
Technics: Casting
Casting method: Gravity casting
Standard: AA59326, JIS, DIN2828
Surface treatment: Grine, sand blast
Connection: grooved
Head Code: round

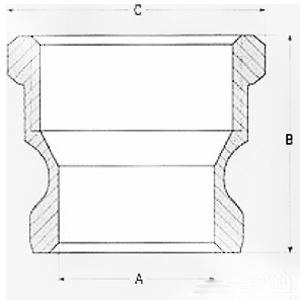

Aluminum camlock coupling Type A index
Size |
DIM |
A |
B |
C |
inch |
mm |
mm |
mm |
|
15 |
1/2 |
16 |
28 |
32 |
20 |
3/4 |
21 |
38 |
32 |
25 |
1 |
24 |
48 |
40 |
32 |
1 1/4 |
28.5 |
56 |
48 |
40 |
1 1/2 |
36 |
60 |
56 |
50 |
2 |
45 |
64 |
67 |
65 |
2 1/2 |
56.5 |
87 |
83 |
80 |
3 |
73 |
73 |
96 |
100 |
4 |
98 |
78 |
127 |
125 |
5 |
122 |
95 |
154 |
150 |
6 |
150 |
86 |
190 |
