Camlock coupling D type
Camlock coupling D type
Type 'D', has a female camlock end and a female pipe thread of the same size. Camlock coupling D type is quick connect, fluid transfer hose fittings that can be used across many applications, including water, petroleum and chemicals.
Product detail:
Place of Origin: Chongqing, China (Mainland)
Brand Name: HI-SEA
Model: HSME-QC004
Material: Aluminum/stainless steel/PP/NY/brass
Size:1/2' 3/4' 1' 1-1/4' 1-1/2' 2' 2-1/2' 3' 4' 5' 6'
Technics: Casting
Casting method: Gravity casting
Standard: AA59326, JIS, DIN2828
Surface treatment: sand blast
Connection: grooved
Head Code: round
Camlock coupling D type index
Size |
DIM |
A |
B |
E |
G |
inch |
mm |
mm |
mm |
mm |
|
15 |
1/2 |
16 |
52 |
32 |
53 |
20 |
3/4 |
19 |
52 |
32 |
54 |
25 |
1 |
24 |
64 |
40 |
61 |
32 |
1 1/4 |
28 |
72 |
48 |
79 |
40 |
1 1/2 |
35 |
73 |
49 |
83 |
50 |
2 |
48 |
80 |
54 |
94 |
65 |
2 1/2 |
58 |
90 |
59 |
109 |
80 |
3 |
72 |
94 |
60 |
130 |
100 |
4 |
98 |
101 |
62 |
158 |
125 |
5 |
122 |
102 |
62 |
184 |
150 |
6 |
145 |
118 |
72 |
219 |

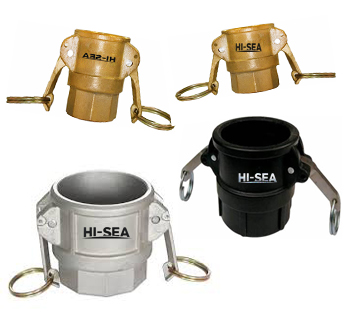

photo of Camlock coupling D type
