Camlock coupling E type
Camlock coupling E type

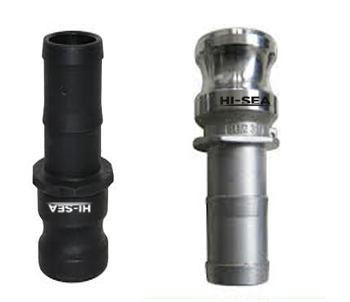

Type "E", has a male camlock end and a male hose tail on the other. The male camlock end will accept any female camlock adaptor and the hose tail is inserted inside any hose of the correct size and secured with a heavy duty stainless steel bolt clamp.
Product detail:
Place of Origin: Chongqing, China (Mainland)
Brand Name: HI-SEA
Model: HSME-QC005
Material: Aluminum/stainless steel/PP/NY/brass
Size:1/2' 3/4' 1' 1-1/4' 1-1/2' 2' 2-1/2' 3' 4' 5' 6'
Technics: Casting
Casting method: Gravity casting
Standard: AA59326, JIS, DIN2828
Surface treatment: sand blast
Connection: grooved
Head Code: round
Camlock coupling E type index
Size |
DIM |
A |
B |
C |
D |
E |
inch |
mm |
mm |
mm |
mm |
|
|
15 |
1/2 |
14 |
98 |
33 |
20 |
40 |
20 |
3/4 |
14 |
98 |
33 |
20 |
4- |
25 |
1 |
20 |
110 |
39 |
26 |
46 |
32 |
1 1/4 |
25 |
121 |
48 |
33 |
53 |
40 |
1 1/2 |
31 |
125 |
56 |
39 |
56 |
50 |
2 |
43 |
140 |
66 |
52 |
60 |
65 |
2 1/2 |
55 |
158 |
80 |
65 |
64 |
80 |
3 |
67 |
170 |
102 |
77 |
66 |
100 |
4 |
92 |
182 |
132 |
102 |
69 |
125 |
5 |
115 |
196 |
154 |
130 |
71 |
150 |
6 |
140 |
220 |
184 |
155 |
78 |
