Camlock coupling C type
Type 'C', has a female camlock end and a male hose tail on the other. Camlock coupling C type consists of two components ¨C coupler and adapter. Insert the adaptor into the coupler and when the adaptor contact with the sealing gaskets, put down the arms. The whole sealing process is quite easy and that could potentially save you a lot of time.
Product detail:
Place of Origin: Chongqing, China (Mainland)
Brand Name: HI-SEA
Model: HSME-QC003
Material: Aluminum/stainless steel/PP/NY/brass
Size:1/2' 3/4' 1' 1-1/4' 1-1/2' 2' 2-1/2' 3' 4' 5' 6'
Standard: AA59326, JIS, DIN2828
Casting Method: Gravity casting
Surface Treatment: sand blast
Threads: BSP, NPT DIN

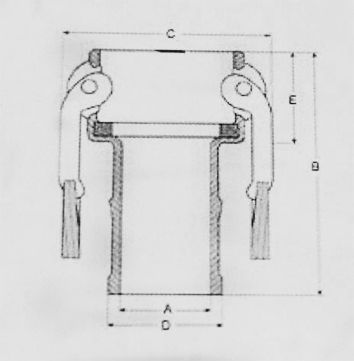

Camlock coupling C type index
Size |
DIM |
A |
B |
D |
E |
G |
inch |
mm |
mm |
mm |
mm |
mm |
|
15 |
1/2 |
14 |
92 |
20 |
32 |
53 |
20 |
3/4 |
114 |
92 |
20 |
32 |
54 |
25 |
1 |
20 |
105 |
26 |
40 |
61 |
32 |
1 1/4 |
25 |
118 |
33 |
48 |
79 |
40 |
1 1/2 |
31 |
121 |
39 |
49 |
83 |
50 |
2 |
43 |
138 |
52 |
54 |
94 |
65 |
2 1/2 |
55 |
155 |
54 |
59 |
109 |
80 |
3 |
67 |
164 |
77 |
60 |
130 |
100 |
4 |
92 |
175 |
103 |
62 |
158 |
125 |
5 |
115 |
187 |
130 |
62 |
184 |
150 |
6 |
140 |
214 |
155 |
72 |
219 |

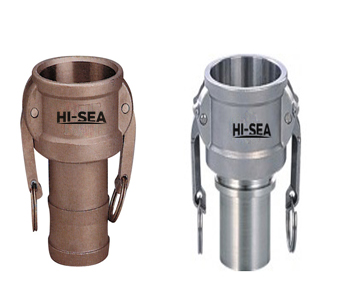

photo of Camlock coupling C type
