Camlock coupling B type

Camlock coupling B type

Type 'B', has a female camlock end and a male pipe thread of the same size. Type B couplers are normally used with Type F adapters, but can be used with Type A and E adapters and DP (Dust Plug) of identical size.

Product detail:

Place of Origin: Chongqing, China (Mainland)

Brand Name: HI-SEA

Model: HSME-QC002

Material: Aluminum/stainless steel/PP/NY/brass

Size:1/2' 3/4' 1' 1-1/4' 1-1/2' 2' 2-1/2' 3' 4' 5' 6'

Technics: Casting

Casting method: Gravity casting

Standard: AA59326, JIS, DIN2828

Surface treatment: Grine, sand blast

Connection: grooved

Head Code: round

Camlock coupling B type index

Size	DIM	A	B	E	G
Size	inch	mm	mm	mm	mm
15	1/2	14	52	32	53
20	3/4	19	52	32	54
25	1	24	64	40	61
32	1 1/4	28	72	48	79
40	1 1/2	35	73	49	83
50	2	48	80	54	94
65	2 1/2	58	90	59	109
80	3	72	94	60	130
100	4	98	101	62	158
125	5	122	102	62	184
150	6	145	118	72	219

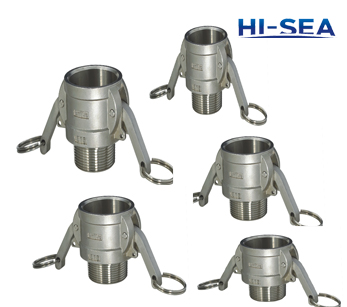

photo of Camlock coupling B type
