High-quality steel Hose Tail
This type of High-quality steel Hose Tail is coupling with high quality. This Hose Tails can be used for a range of different media such as water oil and air and are predominantly used in the hydraulic and pneumatic industries. And it is available in a variety of thread combinations and connections.
Product detail:
Place of Origin: Chongqing, China (Mainland)
Brand Name: HI-SEA
Material: Aluminum/ Brass/ stainless steel
Other name: Aluminum/ Brass/ stainless steel Hose Tail
Size: 1' 2' 3' 4'
Technics: Casting
Casting method: Gravity casting
Specification: MIL-C27487
Max Pressure at 20 Degrees Celsius: 16 Bar
Connection: hose shank
Shape: round
Head Code: round

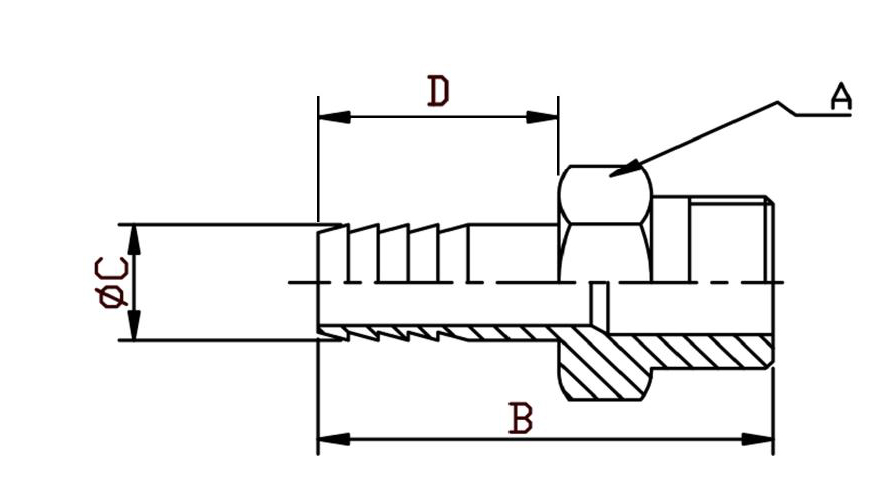

High-quality steel Hose Tail Tail index
DIM |
A |
B |
D |
Kg/100 |
inch |
mm |
mm |
mm |
|
1/2 |
23.2 |
6.3 |
38.5 |
6.05 |
3/4 |
29 |
66 |
38 |
10.05 |
1 |
34.8 |
71 |
42.2 |
21.25 |
1 -1/4 |
45 |
77.8 |
46 |
24.75 |
1 -1/2 |
50 |
89.5 |
55 |
38.15 |
2 |
61.3 |
96.2 |
59.5 |
60.5 |
2 -1/2 |
78.5 |
116.5 |
72 |
92.85 |
3 |
93.5 |
128 |
80.6 |
138.7 |
4 |
118.5 |
138 |
84 |
222.9 |
