Storz Fire Hose Coupling

Storz Fire Hose Coupling

Storz connectors are usually made of brass or aluminium. They can be manufactured by casting for general hose connection and low pressure applications, but for firefighting, it is better to use forgings to guarantee the safety and durability of the coupling.

Product detail:

Place of Origin: Chongqing, China (Mainland)

Brand Name: HI-SEA

Material: Aluminum/ Brass

Size: 1' 2' 3' 4'

Technics: Casting

Casting method: Gravity casting

Standard: EN 1982:2007-11, EN 12420:1999.

Working pressure: 16 Bar

Connection: hose shank

Shape: round

Head Code: round

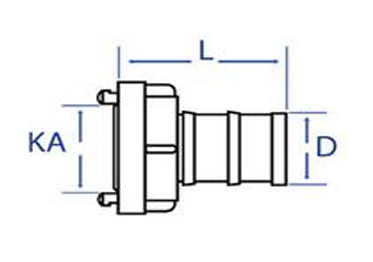

Storz Fire Hose Couplings index

Storz Size

KA (mm)

D (mm)

L (mm)

Storz 25 (D) = DIN 14301

31

25

50

Storz 52 (C)

66

25

90

Storz 52 (C)

66

32

90

Storz 52 (C)

66

45

90

Storz 52 (C) = DIN 14321

66

52

90

Storz 52 (C)

66

60

125

Storz 75 (B)

89

65

125

Storz 75 (B)

89

70

95

Storz 75 (B) = DIN 14322

89

75

125

Storz 75 (B)

89

80

135

Storz 90

105

90

150

Storz 100

115

100

120

Storz 110 (A)

133

100

170

Storz 110 (A) = DIN 14323

133

110

170

Storz 125

148

125

196

Storz 135

159

135

196

Storz 150 = F (3 Claws) Forged

160

150

180

Storz 165

188

150

275

Storz 205

220

205

375
