Camlock coupling DP type
[Search Related Products]
Camlock coupling DP type
Camlock coupling DP type
Type 'DP' is an end cap with male camlock. Camlock coupling DP type is used with water, hydraulic oil, coolants, gasoline & petroleum products.
Product detail:
Place of Origin: Chongqing, China (Mainland)
Brand Name: HI-SEA
Model: HSME- HSME-QC008
Standard: AA59326,JIS, DIN2828
Casting Method: Gravity casting
Surface Treatment: sand blast
Threads: BSP, NPT DIN
Connection: grooved
Head Code: round
Material: Aluminum/stainless steel/PP/NY/brass
Size:1/2' 3/4' 1' 1-1/4' 1-1/2' 2' 2-1/2' 3' 4' 5' 6'
Camlock coupling DP type index
Size |
DIM |
B |
E |
G |
inch |
mm |
mm |
mm |
|
15 |
1/2 |
45 |
35 |
53 |
20 |
3/4 |
45 |
35 |
54 |
25 |
1 |
54 |
42 |
61 |
32 |
1 1/4 |
65 |
51 |
79 |
40 |
1 1/2 |
69 |
52 |
83 |
50 |
2 |
78 |
59 |
94 |
65 |
2 1/2 |
83 |
64 |
109 |
80 |
3 |
88 |
65 |
130 |
100 |
4 |
94 |
70 |
158 |
125 |
5 |
94 |
70 |
184 |
150 |
6 |
112 |
82 |
219 |

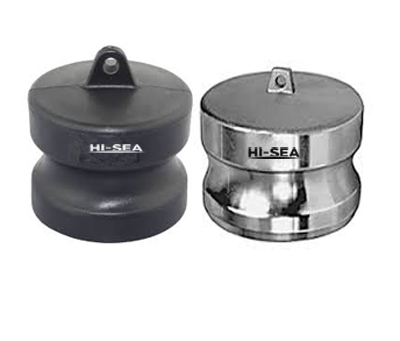

photo of Camlock coupling DP type
