Chafe Chain

Chafe Chain

1. Model: Chafe Chain Type A&B

2. Tensile Strength: Grade R3, R4

3. Diameter: 76mm, 54mm,84mm etc.

4. SWL: 200tonne, 250tonne

5. Structure: Welded Chain

6. Material: Iron and Steel

7. Application: OCIMF Single Point Mooring

8. Certificate: CCS, ABS, BV, DNV, GL, KR, LR, NK, RINA etc.

9. Available Customized Service

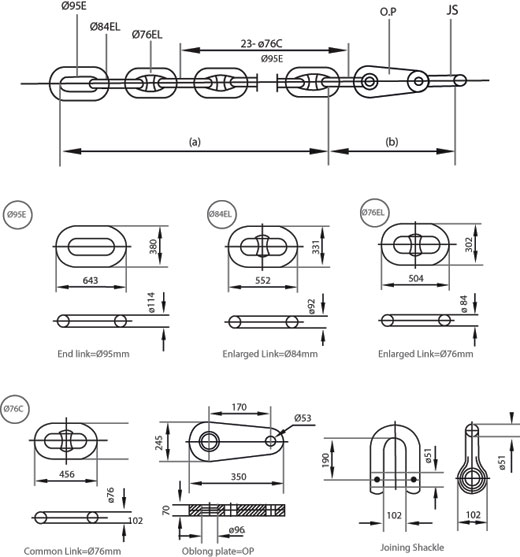

Chafe Chain Dia. 76mm Grade 3

Chafe Chain Dia. 76mm Grade 4

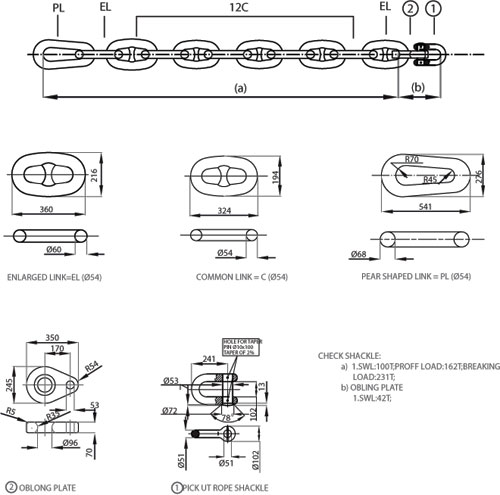

Chafe Chain Dia. 54mm Grade 3

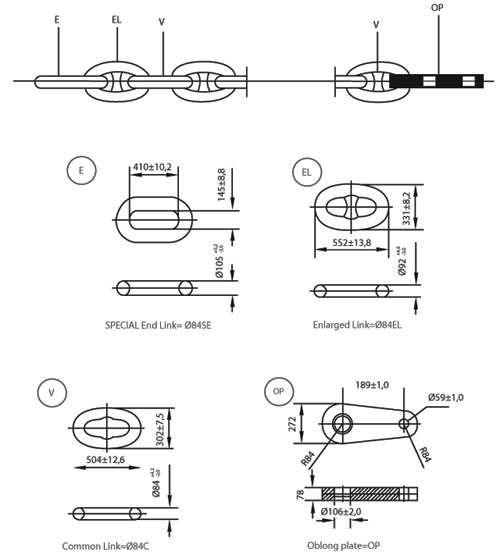

Chafe Chain Dia. 84mm

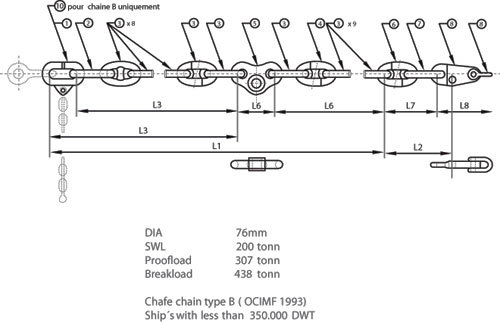

Chafe Chain B Grade 3
