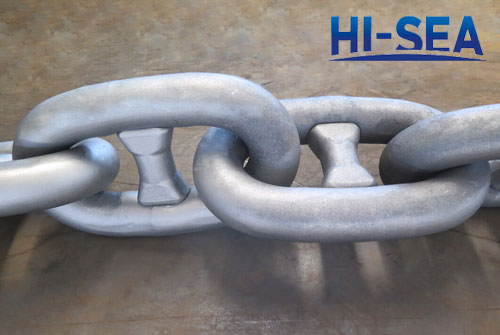

Grade R4 Offshore Mooring Chain
[Search Related Products]
Grade R4 Offshore Mooring Chain
1. Application: Mobile Offshore Mooring Unit,Marine Load System,Fixed Offshore Development Facility;
2. High Mechanical Properties;
3. Good Corrosion Resistance, Anti Fatigue, Wear Resistance;
4. Good Welding Performance;
5. Good Welding Low Temperature Impact Toughness;
6. Certificate: CCS, ABS,BV, DNV, GL, KR, LR,NK,RINA etc.
Specification of R4 Mooring Chains
1. Type: Offshore Mooring Chain
2. Grade: (ABS/DNV) R4
3. Chain Dia.: 50mm~132mm
4. Tension Load: 1920KN~11188KN
5. Breaking Load: 2740KN~15965KN
6. Material: Offshore Mooring Chain Steel;
7. Available Customized Service
Mechanical Properties of R4 Mooring Chain
Grade |
Yield Point (N/mm²,min) |
Tensile Strength (N/mm²,min) |
Elongation (%,min) |
Reduction of Area (%,min) |
Impact Test(V-notch ) |
||
Test Temperature (¡æ) |
Impact (J,min) |
||||||
Base Part |
Weld Part |
||||||
ABS/RQ4 DNV/NVR4 |
580 |
860 |
12 |
50 |
-20 |
50 |
36 |
Offshore Mooring Chain
