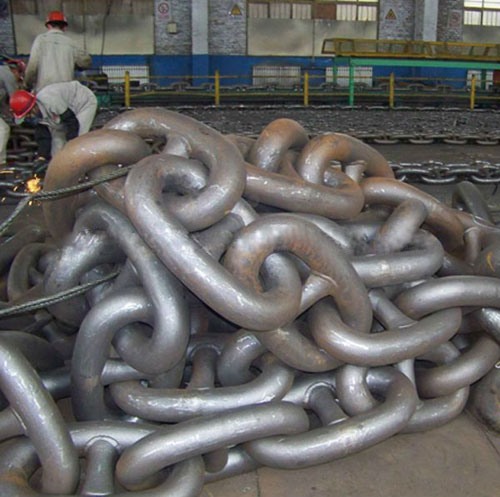

Mooring Chain
Mooring chains, different from common anchor chains, are used in oil drilling platforms and other offshore structures to fix the platfroms and avoid movement. Due to the work environment is very bad, the mooring chains should have high strength, good toughness, wear resistance, fatigue resistance, corrosion resistance etc..
Specification of Mooring Chain
1. Diameter: 34mm~162mm
2. Grade: R3, R3S, R4, R4S, R5;
3. Material: offshore mooring chain steel;
4. Service Life: more than 20 years;
5. Certificate: CCS, ABS, LR, BV, DNV, NK etc.;
6. Available Customized Service
7. Application: offshore drilling equipment, mobile offshore oil recovery equipment, floating crane, pipe-laying ship etc.
ABS,DNV Mooring Chains Metric Load Sheet(Chain Dia. Unit: mm; Load Unit: kN)
Chain Diameter |
R3 |
R3S |
R4 |
|||||
Stud/Studless Pull Load |
Breaking Load |
Studless Link Pull Load |
Stud Link Pull Load |
Breaking Load |
Studless Link Pull Load |
Stud Link Pull Load |
Breaking Load |
|
42 |
1119 |
1599 |
1248 |
1291 |
1786 |
1377 |
1549 |
1965 |
44 |
1223 |
1748 |
1364 |
1411 |
1952 |
1505 |
1693 |
2148 |
46 |
1331 |
1903 |
1485 |
1536 |
2124 |
1639 |
1843 |
2338 |
48 |
1444 |
2064 |
1610 |
1666 |
2304 |
1777 |
1999 |
2536 |
50 |
1560 |
2230 |
1740 |
1800 |
2490 |
1920 |
2160 |
2740 |
52 |
1681 |
2403 |
1875 |
1940 |
2683 |
2069 |
2327 |
2953 |
54 |
1806 |
2581 |
2014 |
2083 |
2882 |
2222 |
2500 |
3171 |
56 |
1934 |
2764 |
2157 |
2231 |
3086 |
2380 |
2677 |
3396 |
58 |
2066 |
2953 |
2304 |
2384 |
3297 |
2543 |
2860 |
3628 |
60 |
2202 |
3147 |
2456 |
2541 |
3514 |
2710 |
3049 |
3867 |
62 |
2342 |
3347 |
2612 |
2702 |
3737 |
2882 |
3242 |
4112 |
64 |
2485 |
3552 |
2771 |
2867 |
3966 |
3058 |
3440 |
4364 |
66 |
2632 |
3762 |
2935 |
3036 |
4200 |
3239 |
3644 |
4622 |
68 |
2782 |
3977 |
3103 |
3210 |
4440 |
3424 |
3852 |
4886 |
70 |
2936 |
4196 |
3274 |
3387 |
4686 |
3613 |
4065 |
5156 |
73 |
3173 |
4535 |
3539 |
3661 |
5064 |
3905 |
4393 |
5572 |
76 |
3417 |
4885 |
3812 |
3943 |
5454 |
4206 |
4731 |
6002 |
78 |
3584 |
5124 |
3998 |
4136 |
5721 |
4411 |
4963 |
6295 |
81 |
3841 |
5490 |
4284 |
4432 |
6130 |
4727 |
5318 |
6746 |
84 |
4104 |
5866 |
4578 |
4735 |
6550 |
5051 |
5682 |
7028 |
87 |
4374 |
6252 |
4879 |
5047 |
6981 |
5383 |
6056 |
7682 |
90 |
4651 |
6648 |
5187 |
5366 |
7423 |
5724 |
6439 |
8168 |
92 |
4838 |
6916 |
5397 |
5583 |
7723 |
5955 |
6699 |
8498 |
95 |
5125 |
7326 |
5717 |
5914 |
8180 |
6308 |
7096 |
9002 |
97 |
5320 |
7604 |
5934 |
6138 |
8491 |
6547 |
7366 |
9343 |
100 |
5616 |
8028 |
6264 |
6480 |
8964 |
6912 |
7776 |
9864 |
102 |
5817 |
8316 |
6489 |
6712 |
9285 |
7160 |
8055 |
10217 |
105 |
6123 |
8753 |
6830 |
7065 |
9774 |
7536 |
8478 |
10755 |
107 |
6330 |
9049 |
7061 |
7304 |
10104 |
7791 |
8765 |
11118 |
111 |
6751 |
9650 |
7530 |
7789 |
10775 |
8309 |
9347 |
11857 |
114 |
7072 |
10109 |
7888 |
8160 |
11288 |
8704 |
9792 |
12421 |
Note: the above parameters is only one part. If you want to know more detail information, please feel free to contact us.
