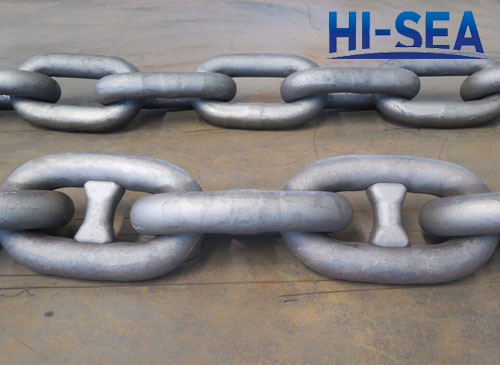

Stud Link Mooring Chain
1. Dia.: 34mm~162mm
2. Grade: R3,R3S,R4
3. Pull Load Range: 745kN~17596kN
4. Breaking Load Range: 1065kN~22321kN
5. Material: Offshore Mooring Chain Steel
6. Certificate: CCS, ABS,BV, DNV, GL, KR, LR,NK,RINA etc.
7. Customized Service is Available
Stud Link Mooring Chain
Testing Load of Stud Link Mooring Chain
Load(KN) |
R3 Stud Chian |
R3S Stud Chain |
R4 Stud Chain |
Pull Load(PL) |
0.0156d²(44-0.08d) |
0.0180d²(44-0.08d) |
0.0216d²(44-0.08d) |
Breaking Load(BL) |
0.0223d²(44-0.08d) |
0.0249d²(44-0.08d) |
0.0274d²(44-0.08d) |
Note: this load sheet refers to ABS rules and DNV rules, all loading data included in the sheet shall be calculated according to relevant formulas. |
ABS,DNV Mooring Chains Metric Load Sheet(Chain Dia. Unit: mm; Load Unit: kN)
Chain Diameter |
R3 |
R3S |
R4 |
|||||
Stud/Studless Pull Load |
Breaking Load |
Studless Link Pull Load |
Stud Link Pull Load |
Breaking Load |
Studless Link Pull Load |
Stud Link Pull Load |
Breaking Load |
|
34 |
745 |
1065 |
831 |
859 |
1189 |
917 |
1031 |
1308 |
36 |
832 |
1189 |
928 |
960 |
1327 |
1024 |
1152 |
1461 |
38 |
923 |
1319 |
1030 |
1065 |
1473 |
1136 |
1278 |
1621 |
40 |
1019 |
1456 |
1136 |
1176 |
1626 |
1254 |
1411 |
1789 |
42 |
1119 |
1599 |
1248 |
1291 |
1786 |
1377 |
1549 |
1965 |
44 |
1223 |
1748 |
1364 |
1411 |
1952 |
1505 |
1693 |
2148 |
46 |
1331 |
1903 |
1485 |
1536 |
2124 |
1639 |
1843 |
2338 |
48 |
1444 |
2064 |
1610 |
1666 |
2304 |
1777 |
1999 |
2536 |
50 |
1560 |
2230 |
1740 |
1800 |
2490 |
1920 |
2160 |
2740 |
52 |
1681 |
2403 |
1875 |
1940 |
2683 |
2069 |
2327 |
2953 |
54 |
1806 |
2581 |
2014 |
2083 |
2882 |
2222 |
2500 |
3171 |
56 |
1934 |
2764 |
2157 |
2231 |
3086 |
2380 |
2677 |
3396 |
58 |
2066 |
2953 |
2304 |
2384 |
3297 |
2543 |
2860 |
3628 |
60 |
2202 |
3147 |
2456 |
2541 |
3514 |
2710 |
3049 |
3867 |
62 |
2342 |
3347 |
2612 |
2702 |
3737 |
2882 |
3242 |
4112 |
64 |
2485 |
3552 |
2771 |
2867 |
3966 |
3058 |
3440 |
4364 |
66 |
2632 |
3762 |
2935 |
3036 |
4200 |
3239 |
3644 |
4622 |
68 |
2782 |
3977 |
3103 |
3210 |
4440 |
3424 |
3852 |
4886 |
70 |
2936 |
4196 |
3274 |
3387 |
4686 |
3613 |
4065 |
5156 |
73 |
3173 |
4535 |
3539 |
3661 |
5064 |
3905 |
4393 |
5572 |
76 |
3417 |
4885 |
3812 |
3943 |
5454 |
4206 |
4731 |
6002 |
78 |
3584 |
5124 |
3998 |
4136 |
5721 |
4411 |
4963 |
6295 |
81 |
3841 |
5490 |
4284 |
4432 |
6130 |
4727 |
5318 |
6746 |
84 |
4104 |
5866 |
4578 |
4735 |
6550 |
5051 |
5682 |
7028 |
87 |
4374 |
6252 |
4879 |
5047 |
6981 |
5383 |
6056 |
7682 |
90 |
4651 |
6648 |
5187 |
5366 |
7423 |
5724 |
6439 |
8168 |
92 |
4838 |
6916 |
5397 |
5583 |
7723 |
5955 |
6699 |
8498 |
95 |
5125 |
7326 |
5717 |
5914 |
8180 |
6308 |
7096 |
9002 |
97 |
5320 |
7604 |
5934 |
6138 |
8491 |
6547 |
7366 |
9343 |
100 |
5616 |
8028 |
6264 |
6480 |
8964 |
6912 |
7776 |
9864 |
Note: the above sheet is only one part. If you want to get more information, please feel free to contact us.
Stud Link Mooring Chain
