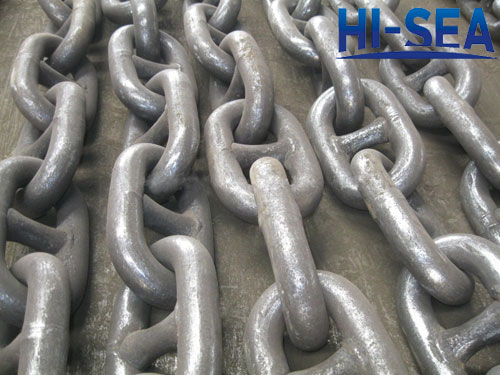

Offshore Stud Chain

1. Dia.: 34mm~162mm

2. Grade: R3,R3S,R4

3. Pull Load Range: 745kN~17596kN

4. Breaking Load Range: 1065kN~22321kN

5. Material: Offshore Mooring Chain Steel

6. Certificate: CCS, ABS,BV, DNV, GL, KR, LR,NK,RINA etc.

7. Customized Service is Available

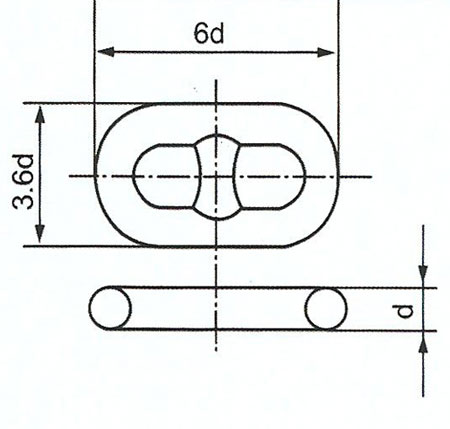

Stud Common Link

Testing Load of Stud Chain

Load(KN)	R3 Stud Chian	R3S Stud Chain	R4 Stud Chain
Pull Load(PL)	0.0156d²(44-0.08d)	0.0180d²(44-0.08d)	0.0216d²(44-0.08d)
Breaking Load(BL)	0.0223d²(44-0.08d)	0.0249d²(44-0.08d)	0.0274d²(44-0.08d)
Note: this load sheet refers to ABS rules and DNV rules, all loading data included in the sheet shall be calculated according to relevant formulas.
