Offshore Studless Chain

[Search Related Products]

Offshore Studless Chain

Offshore Studless Chain

1. Dia.: 34mm~162mm

2. Grade: R3,R3S,R4

3. Pull Load Range: 745kN~15641kN

4. Breaking Load Range: 1065kN~22321kN

5. Material: Offshore Mooring Chain Steel

6. Certificate: CCS, ABS,BV, DNV, GL, KR, LR,NK,RINA etc.

7. Customized Service is Available

Offshore Studless Chain

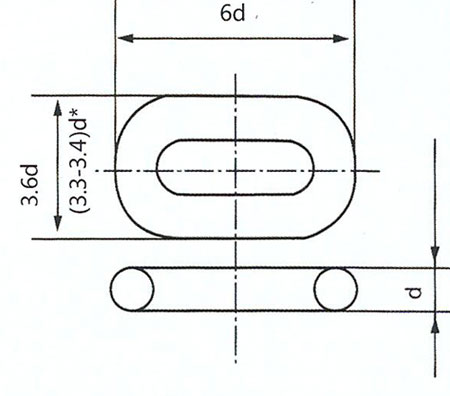

Studless Link for Mooring Chain

Testing Load of Studless Chain

Load(KN)

R3 Studless Chian

R3S Studless Chain

R4 Studless Chain

Pull Load(PL)

0.0156d²(44-0.08d)

0.01743d²(44-0.08d)

0.01918d²(44-0.08d)

Breaking Load(BL)

0.0223d²(44-0.08d)

0.0249d²(44-0.08d)

0.0274d²(44-0.08d)

Note: this load sheet refers to ABS rules and DNV rules, all loading data included in the sheet shall be calculated according to relevant formulas.
