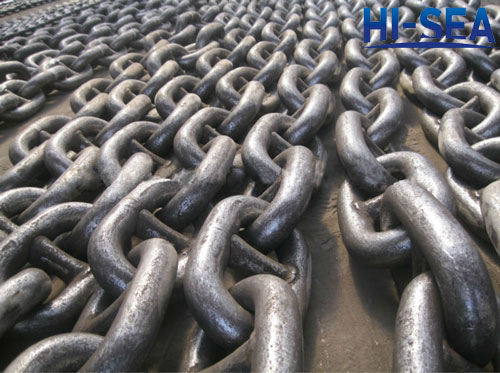

Offshore Oil Platform Mooring Chain
Offshore oil platform mooring chains are used to fix the vessel on sea and avoid movement. Offshore mooring chains are applicable to marine oil production system, semi submarine drilling platform, single point mooring structure, floating production storage and storage facilities.
Our mooring chains have the following features: high strength, good toughness, corrosion resistance, anti fatigue, wear resistance, excellent cold bending performance and welding performance.
Specification of Offshore Mooring Chain
1. Grade: R3, R3S, R4
2. Chain Diameter: 34mm~162mm
3. Tension Load: 745kN~17596kN
4. Breaking Load: 1065kN~22321kN
5. Material: R3,R3S, R4 Quality Mooring Chain Steel
6. Certificate: CCS, ABS,BV, DNV, GL, KR, LR,NK,RINA etc.
7. Available Customized Service
ABS,DNV Mooring Chains Metric Load Sheet(Chain Dia. Unit: mm; Load Unit: kN)
Chain Diameter |
R3 |
R3S |
R4 |
|||||
Stud/Studless Pull Load |
Breaking Load |
Studless Link Pull Load |
Stud Link Pull Load |
Breaking Load |
Studless Link Pull Load |
Stud Link Pull Load |
Breaking Load |
|
50 |
1560 |
2230 |
1740 |
1800 |
2490 |
1920 |
2160 |
2740 |
52 |
1681 |
2403 |
1875 |
1940 |
2683 |
2069 |
2327 |
2953 |
54 |
1806 |
2581 |
2014 |
2083 |
2882 |
2222 |
2500 |
3171 |
56 |
1934 |
2764 |
2157 |
2231 |
3086 |
2380 |
2677 |
3396 |
58 |
2066 |
2953 |
2304 |
2384 |
3297 |
2543 |
2860 |
3628 |
60 |
2202 |
3147 |
2456 |
2541 |
3514 |
2710 |
3049 |
3867 |
62 |
2342 |
3347 |
2612 |
2702 |
3737 |
2882 |
3242 |
4112 |
64 |
2485 |
3552 |
2771 |
2867 |
3966 |
3058 |
3440 |
4364 |
66 |
2632 |
3762 |
2935 |
3036 |
4200 |
3239 |
3644 |
4622 |
68 |
2782 |
3977 |
3103 |
3210 |
4440 |
3424 |
3852 |
4886 |
70 |
2936 |
4196 |
3274 |
3387 |
4686 |
3613 |
4065 |
5156 |
73 |
3173 |
4535 |
3539 |
3661 |
5064 |
3905 |
4393 |
5572 |
76 |
3417 |
4885 |
3812 |
3943 |
5454 |
4206 |
4731 |
6002 |
78 |
3584 |
5124 |
3998 |
4136 |
5721 |
4411 |
4963 |
6295 |
81 |
3841 |
5490 |
4284 |
4432 |
6130 |
4727 |
5318 |
6746 |
84 |
4104 |
5866 |
4578 |
4735 |
6550 |
5051 |
5682 |
7028 |
87 |
4374 |
6252 |
4879 |
5047 |
6981 |
5383 |
6056 |
7682 |
90 |
4651 |
6648 |
5187 |
5366 |
7423 |
5724 |
6439 |
8168 |
92 |
4838 |
6916 |
5397 |
5583 |
7723 |
5955 |
6699 |
8498 |
95 |
5125 |
7326 |
5717 |
5914 |
8180 |
6308 |
7096 |
9002 |
97 |
5320 |
7604 |
5934 |
6138 |
8491 |
6547 |
7366 |
9343 |
100 |
5616 |
8028 |
6264 |
6480 |
8964 |
6912 |
7776 |
9864 |
102 |
5817 |
8316 |
6489 |
6712 |
9285 |
7160 |
8055 |
10217 |
105 |
6123 |
8753 |
6830 |
7065 |
9774 |
7536 |
8478 |
10755 |
107 |
6330 |
9049 |
7061 |
7304 |
10104 |
7791 |
8765 |
11118 |
111 |
6751 |
9650 |
7530 |
7789 |
10775 |
8309 |
9347 |
11857 |
114 |
7072 |
10109 |
7888 |
8160 |
11288 |
8704 |
9792 |
12421 |
117 |
7398 |
10575 |
8251 |
8536 |
11808 |
9105 |
10243 |
12993 |
120 |
7728 |
11047 |
8620 |
8917 |
12335 |
9511 |
10700 |
13573 |
