DIN 580 Eye Bolt

DIN 580 Eye Bolt:

DIN 580 eye bolts are essential for rigging systems. Our company has produced this model for several years and all of them have required relative society certifications. Welcome to get in touch with us.

Details:

1. Model: DIN 580 Eye Bolt
2. Material: Carbon Steel, stainless steel, alloy steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized,hot dipped galvanized
5. Size: From M6 to M52
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Size(d)

WLL(t)

WLL(t)

Dimensions

Weight(kg)

d1(mm)

d2(mm)

d3(mm)

b(mm)

e(mm)

h(mm)

k(mm)

M6

0.07

0.05

17

28

16

13

6

17

6

5

M8

0.14

0.095

20

36

20

15

6

18

8

6

M10

0.23

0.17

25

45

25

18

8

22

10

11

M12

0.34

0.24

30

54

30

22

10

26

12

18

M14

0.49

0.34

35

63

35

28

12

30

14

28.5

M16

0.7

0.5

35

63

35

28

12

30

14

28

M20

1.2

0.83

40

72

40

30

12

35

16

45

M22

1.5

1.05

45

81

45

35

14

40

18

67

M24

1.8

1.27

50

90

50

38

16

45

20

87

M27

2.5

1.65

50

90

50

38

18

45

20

88

M30

3.6

2.6

65

108

60

45

18

55

24

166

M33

4.3

3.2

65

108

60

45

22

55

24

172

M36

5.1

3.7

75

126

70

55

22

65

28

265

M39

6.1

4.3

75

126

70

55

26

65

28

280

M42

7

5

85

144

80

65

30

75

32

403

M45

8

5.5

85

144

80

65

30

75

32

425

M48

8.6

6.1

100

166

90

70

35

85

38

638

M52

9.9

7.3

100

166

90

70

35

85

38

660

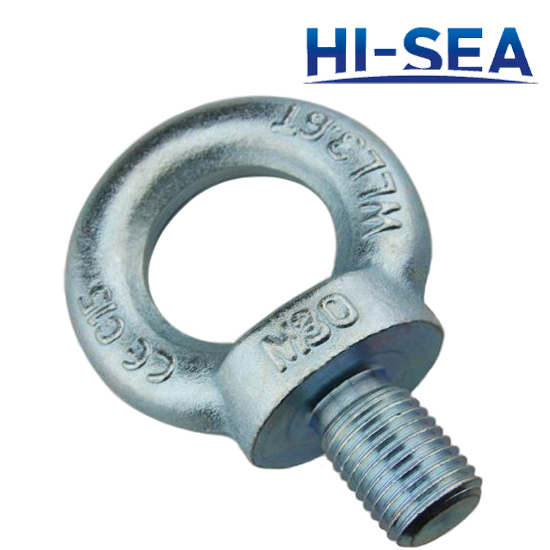

Photo:

DIN 580 Eye Bolt

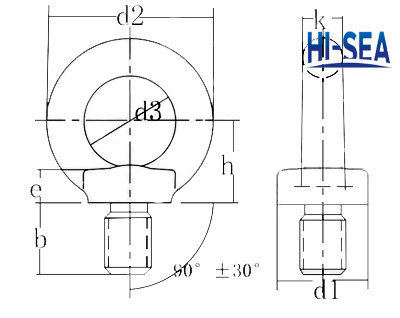

Structure:

Eye Bolt and Eye Nut

DIN 580 Eye Bolt

Contact with us now

Size(d)	WLL(t)	WLL(t)	Dimensions							Weight(kg)
Size(d)	WLL(t)	WLL(t)	d1(mm)	d2(mm)	d3(mm)	b(mm)	e(mm)	h(mm)	k(mm)	Weight(kg)
M6	0.07	0.05	17	28	16	13	6	17	6	5
M8	0.14	0.095	20	36	20	15	6	18	8	6
M10	0.23	0.17	25	45	25	18	8	22	10	11
M12	0.34	0.24	30	54	30	22	10	26	12	18
M14	0.49	0.34	35	63	35	28	12	30	14	28.5
M16	0.7	0.5	35	63	35	28	12	30	14	28
M20	1.2	0.83	40	72	40	30	12	35	16	45
M22	1.5	1.05	45	81	45	35	14	40	18	67
M24	1.8	1.27	50	90	50	38	16	45	20	87
M27	2.5	1.65	50	90	50	38	18	45	20	88
M30	3.6	2.6	65	108	60	45	18	55	24	166
M33	4.3	3.2	65	108	60	45	22	55	24	172
M36	5.1	3.7	75	126	70	55	22	65	28	265
M39	6.1	4.3	75	126	70	55	26	65	28	280
M42	7	5	85	144	80	65	30	75	32	403
M45	8	5.5	85	144	80	65	30	75	32	425
M48	8.6	6.1	100	166	90	70	35	85	38	638
M52	9.9	7.3	100	166	90	70	35	85	38	660

Eye Bolt and Eye Nut

DIN 580 Eye Bolt
