Forged Carbon Steel US Type Regular Nut Eye Bolt
[Search Related Products]
Forged Carbon Steel US Type Regular Nut Eye Bolt:
Forged carbon steel US type regular nut eye bolts are essential for rigging systems. Our company has produced this model for several years. All sizes are available and the price is competitive. Welcome to contact with us.
Details:
1. Model: Forged Carbon Steel US Type Regular Nut Eye Bolt
2. Material: Carbon Steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized
5. Size: as customers' requirement
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Shank DIA.and length(inch) | Working load limit(LBS.) | Weight per(LBS.) | Dimensions(inch) | |||||||
A | B | C | D | E | F | G | H | |||
1/4กม2 | 650 | 8.2 | 0.25 | 0.5 | 1 | 0.25 | 1.5 | 2 | 3.06 | 0.56 |
1/4กม4 | 650 | 11.7 | 0.25 | 0.5 | 1 | 0.25 | 2.5 | 4 | 5.06 | 0.56 |
5/16กม2-1/4 | 1200 | 13.3 | 0.31 | 0.52 | 1.25 | 0.31 | 1.5 | 2.25 | 3.56 | 0.69 |
5/16กม2-1/2 | 1200 | 25 | 0.31 | 0.52 | 1.25 | 0.31 | 2.5 | 4.25 | 5.56 | 0.69 |
3/8กม2-1/2 | 1550 | 23.3 | 0.38 | 0.75 | 1.5 | 0.38 | 1.5 | 2.5 | 4.12 | 0.88 |
3/8กม4-1/2 | 1550 | 29.5 | 0.38 | 0.75 | 1.5 | 0.38 | 2.5 | 4.5 | 6.12 | 0.88 |
3/8กม6 | 1550 | 35.2 | 0.38 | 0.75 | 1.5 | 0.38 | 2.5 | 6 | 7.62 | 0.88 |
1/2กม3-1/4 | 2600 | 50.3 | 0.5 | 1 | 2 | 0.5 | 1.5 | 3.25 | 5.38 | 1.12 |
1/2-6 | 2600 | 66.1 | 0.5 | 1 | 2 | 0.5 | 3 | 6 | 8.12 | 1.12 |
1/2-8 | 2600 | 82 | 0.5 | 1 | 2 | 0.5 | 3 | 8 | 10.12 | 1.12 |
1/2-10 | 2600 | 88 | 0.5 | 1 | 2 | 0.5 | 3 | 10 | 12.12 | 1.12 |
1/2-12 | 2600 | 114.2 | 0.5 | 1 | 2 | 0.5 | 3 | 12 | 14.12 | 1.12 |
5/8 | 5200 | 103.1 | 0.62 | 1.25 | 2.5 | 0.62 | 2 | 4 | 6.69 | 1.44 |
5/8กม6 | 5200 | 118.2 | 0.62 | 1.25 | 2.5 | 0.62 | 3 | 6 | 8.69 | 1.44 |
5/8กม8 | 5200 | 135.1 | 0.62 | 1.25 | 2.5 | 0.62 | 3 | 8 | 10.69 | 1.44 |
5/10กม10 | 5200 | 153.6 | 0.62 | 1.25 | 2.5 | 0.62 | 3 | 10 | 12.69 | 1.44 |
5/8กม12 | 5200 | 167.1 | 0.62 | 1.25 | 2.5 | 0.62 | 4 | 12 | 14.69 | 1.44 |
3/4กม4 | 7200 | 168.6 | 0.75 | 1.5 | 3 | 0.75 | 2 | 4.5 | 7.69 | 1.69 |
3/4กม6 | 7200 | 184.5 | 0.75 | 1.5 | 3 | 0.75 | 3 | 6 | 9.19 | 1.69 |
3/4กม8 | 7200 | 207.9 | 0.75 | 1.5 | 3 | 0.75 | 3 | 8 | 11.19 | 1.69 |
3/4กม10 | 7200 | 235 | 0.75 | 1.5 | 3 | 0.75 | 3 | 10 | 13.19 | 1.69 |
3/4กม12 | 7200 | 257.5 | 0.75 | 1.5 | 3 | 0.75 | 4 | 12 | 15.19 | 1.69 |
3/4กม15 | 7200 | 298 | 0.75 | 1.5 | 3 | 0.75 | 5 | 15 | 18.19 | 1.69 |
7/8กม5 | 10600 | 270 | 0.88 | 1.75 | 3.5 | 0.88 | 2.5 | 5 | 8.75 | 2 |
7/8กม8 | 10600 | 308 | 0.88 | 1.75 | 3.5 | 0.88 | 4 | 8 | 11.75 | 2 |
7/8กม12 | 10600 | 400 | 0.88 | 1.75 | 3.5 | 0.88 | 4 | 12 | 15.75 | 2 |
1กม6 | 13300 | 421 | 1 | 2 | 4 | 1 | 3 | 6 | 10.31 | 2.31 |
1กม9 | 13300 | 468.5 | 1 | 2 | 4 | 1 | 4 | 9 | 13.31 | 2.31 |
1กม12 | 13300 | 540 | 1 | 2 | 4 | 1 | 4 | 12 | 16.31 | 2.31 |
1กม18 | 13300 | 650 | 1 | 2 | 4 | 1 | 7 | 18 | 22.31 | 2.31 |
1-1/4กม8 | 21000 | 750 | 1.25 | 2.5 | 5 | 1.25 | 4 | 8 | 13.38 | 2.88 |
1-1/4กม12 | 21000 | 900 | 1.25 | 2.5 | 5 | 1.25 | 4 | 12 | 17.38 | 2.88 |
1-1/4กม20 | 21000 | 1210 | 1.25 | 2.5 | 5 | 1.25 | 6 | 20 | 25.38 | 2.88 |

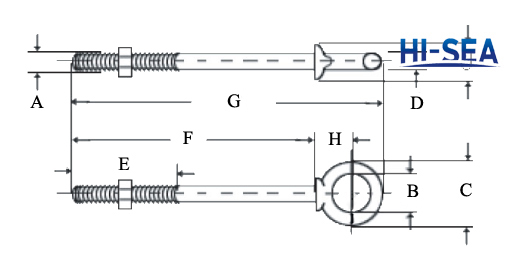

Structure:

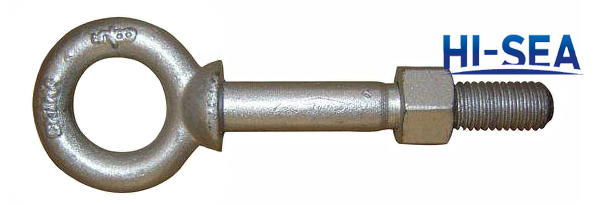

Photo:
