Eye Bolt with Oval Link BS4278
[Search Related Products]
Eye Bolt with Oval Link BS4278:
Our company has produced this model for many years and we also co-operate with other excellent factories. All sizes are available and the price is competitive. If you are interested in our products, please feel free to contact with us.
Details:
1. Model: Eye Bolt with Oval Link BS42782. Material: Carbon Steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized,hot dipped galvanized, zinc plated
5. Size: From 8mm to 48mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Size |
Weight |
WLL |
mm |
kg/pc |
ton |
Metric coarse thread |
||
8 |
0.33 |
0.1 |
10 |
0.35 |
0.15 |
12 |
0.36 |
0.2 |
14 |
0.37 |
0.3 |
16 |
0.38 |
0.4 |
18 |
0.39 |
0.7 |
20 |
0.4 |
1 |
22 |
0.65 |
1.3 |
24 |
0.65 |
1.6 |
30 |
1.31 |
2.5 |
36 |
2.69 |
4 |
42 |
5.31 |
4.5 |
45 |
5.35 |
5 |
48 |
5.5 |
6.3 |

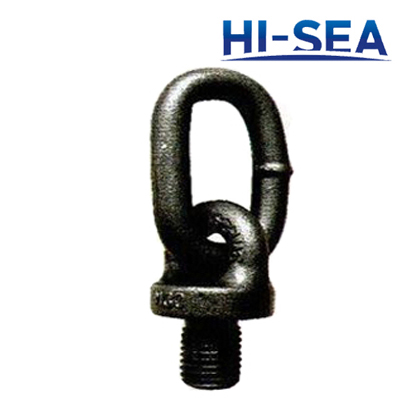

Photo:

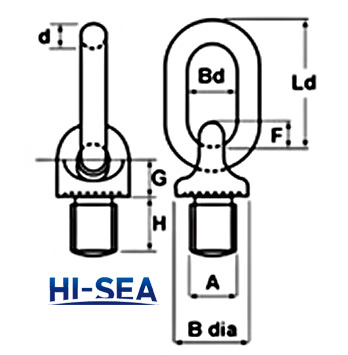

Structure:
