Rectangular Base Eye Plate

Rectangular Base Eye Plates:

Rectangular base eye plates are essentail for rigging systems. Our company has produced this product for many years and we also co-operate with other excellent factories. All sizes are available and the price is competitive. If you are interested in our products, please feel free to contact with us.

Details:

1. Model: Rectangular Base Eye Plates
2. Standard: Admiralty pattern
3. Material: High tensile steel
4. Usage: Wire rope fittings, marine hardware fittings
5. Surface Treatment: zinc plated, high polished, self colour
6. Size: Various sizes are available
7. Packing: Gunny bag or carton and pallet / by customer requirments
8. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
9. Certifications: ISO9001, CE, SGS,etc.
10. Notes: This product has a proof load applied. However, the working load limit is subject to the correct welding procedure being carried out.

Specification:

Size

W.L.L.

Thread length

I.D.of eye

N.W.

inch

lbs

inch

inch

lbs/100pcs

1/4กม2

650

1.5

0.50

6.61

1/4กม4

650

2.5

0.50

8.61

5/16กม2-1/4

1200

1.5

0.60

12.50

5/16กม4-1/4

1200

2.5

0.60

18.75

3/8กม2-1/2

1550

1.5

0.80

19.00

3/8กม4-1/2

1550

2.5

0.80

31.58

1/2กม3-1/4

2600

1.5

1.00

37.50

1/2กม6

2600

3.0

1.00

56.25

5/8กม4

5200

2.0

1.30

75.00

5/8กม6

5200

3.0

1.30

100.25

3/4กม4-1/2

7200

2.0

1.50

125.00

3/4กม6

7200

3.0

1.50

150.00

7/8กม5

10600

2.5

1.80

225.00

1กม6

13300

3.0

2.00

375.00

1กม9

13300

4.0

2.00

429.00

1กม12

13300

4.0

2.00

550.00

1-1/4กม8

21000

4.0

2.50

650.00

1-1/4กม12

21000

4.0

2.50

775.00

1-1/2กม15

21000

6.0

3.00

1425.00

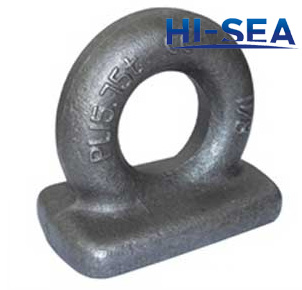

Photo:

Rectangular Base Eye Plate

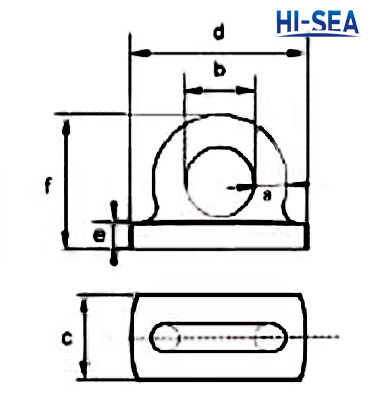

Structure:

Rectangular Base Eye Plate
