Hot Dip Galvanized Thimble Eye Bolt

Hot Dip Galvanized Thimble Eye Bolt

Thimble eye bolts are forged in two styles, straight and bent at a 45° angle. The broad radius o the eye provides an excellent attachment point to deadend or guy messenger wire, guy strand or formed wire grips. Thimble eye bolts eliminate the need for thimbles, shackles, links and guy hooks. Our company has produced this product for many years and we also co-operate with excellent factories. All sizes are available and the price is very competitive. What' s more, our professional sales team will provide you with the best service. Welcome to contact with us.

Details:

1. Model: Thimble Eye Bolt
2. Material: Steel
3. Usage: lifting, marine riggings
4. Surface Treatment: Hot dip galvanized
5. Size: Various sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specification and marks can be made according to customers requirements
Specification:

Hot Dip Galvanized Thimble Eye Bolt
Size	Weight
in	lbs
5/8×8	1.17
5/8×10	1.28
5/8×12	1.44
5/8×14	1.56
5/8×16	1.74
5/8×18	1.94
5/8×20	2.00
5/8×22	2.15
5/8×24	2.24
5/8×26	2.35
5/8×30	3.05
5/8×36	3.29

Hot Dip Galvanized Thimble Eye Bolt Angle Type
Size	Weight
in	lbs
5/8×8	1.22
5/8×10	1.32
5/8×12	1.44
5/8×14	1.59
5/8×16	1.72
5/8×18	1.86

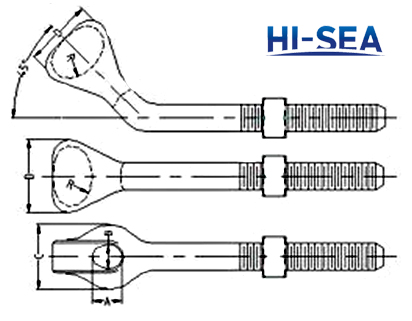

Structure:
