Rigging Marine Hardware JIS1168 Eye Bolt

Rigging Marine Hardware JIS1168 Eye Bolt:

This model is one of our company's key products. We have produced this product for many years. All sizes are available and the price is very competitive. If you are interested in our products, welcome to contact with us.

Details:

1. Model: Rigging Marine Hardware JIS1168 Eye Bolt
2. Material: Carbon Steel, stainless steel, alloy steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized,hot dipped galvanized, zinc plated
5. Size: as customers' requirement
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Size

A

B

C

D

H

L

E

WLL

mm

mm

mm

mm

mm

mm

mm

mm

ton

M6

23

14

4.5

6

20

11

6

0.05

M8

32.6

15

6.3

12

27.3

12

8

0.08

M10

41

20

8

16

33.5

15

10

0.15

M12

50

24

10

18

42

19

12

0.22

M14

56

26.5

11.5

21.5

46.5

21

14

0.3

M16

60

29

12.5

23.5

49

23

16

0.45

M18

67

31

14.5

25

53.5

25

18

0.5

M20

72

33

16

26

58

28

20

0.63

M22

81

35

18

28

65.5

33

22

0.8

M24

90

38

20

31

73

38

24

0.95

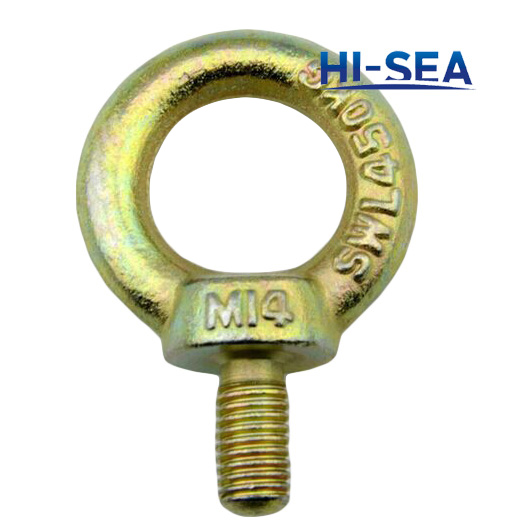

Photo:

Rigging Marine Hardware JIS1168 Eye Bolt

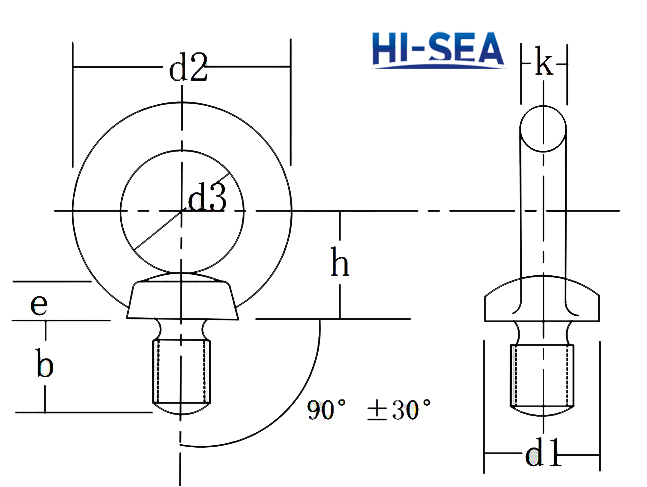

Structure:

Rigging Marine Hardware JIS1168 Eye Bolt
