Eye Screw BS4278-1 Collared Eyebolt
[Search Related Products]Eye Screw BS4278-1 Collared Eyebolt:
This model is important for marine hardware. We have produced this product for several years. All of products have high cost performance. If you are interested in this product, please do no hesitate to contact with us.
Details:
1. Model: Eye Screw BS4278-1 Collared Eyebolt2. Material: Gray iron, ductile iron, steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized,hot dipped galvanized, zinc plated
5. Size: From M6 to M76
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Metric Thread(mm) |
SWL(vertical) |
Dimensions(mm) |
|||||||||
ton |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
|
M6 |
0.10 |
22 |
15 |
7 |
15 |
9 |
20 |
18 |
1 |
3 |
9 |
M8 |
0.15 |
22 |
15 |
7 |
15 |
9 |
20 |
18 |
1 |
3 |
9 |
M10 |
0.25 |
22 |
15 |
7 |
15 |
9 |
20 |
18 |
1 |
3 |
9 |
M12 |
0.40 |
22 |
15 |
7 |
15 |
9 |
20 |
18 |
1 |
3 |
9 |
M16 |
0.80 |
29 |
20 |
10 |
20 |
12 |
26 |
23 |
1 |
3 |
12 |
M18 |
1.00 |
36 |
24 |
12 |
24 |
14 |
32 |
28 |
1 |
4 |
14 |
M20 |
1.60 |
40 |
27 |
14 |
27 |
16 |
36 |
32 |
1 |
5 |
16 |
M22 |
1.60 |
45 |
30 |
15 |
30 |
18 |
40 |
35 |
1 |
5 |
18 |
M24 |
2.50 |
52 |
35 |
17 |
35 |
21 |
46 |
40 |
2 |
6 |
21 |
M27 |
2.50 |
58 |
39 |
20 |
39 |
23 |
52 |
46 |
2 |
7 |
23 |
M30 |
4.00 |
65 |
44 |
22 |
44 |
26 |
58 |
51 |
2 |
7 |
26 |
M33 |
4.00 |
72 |
48 |
24 |
48 |
29 |
64 |
56 |
3 |
8 |
29 |
M36 |
6.30 |
81 |
54 |
27 |
64 |
32 |
72 |
63 |
3 |
9 |
32 |
M39 |
6.30 |
90 |
60 |
30 |
60 |
36 |
80 |
70 |
3 |
10 |
36 |
M45 |
8.00 |
101 |
68 |
34 |
68 |
40 |
90 |
79 |
3 |
11 |
40 |
M52 |
12.50 |
115 |
76 |
38 |
76 |
46 |
102 |
89 |
3 |
13 |
46 |
M56 |
16.00 |
128 |
86 |
43 |
86 |
51 |
114 |
100 |
4 |
14 |
51 |
M64 |
20.00 |
144 |
96 |
48 |
96 |
58 |
128 |
112 |
4 |
16 |
58 |
M70 |
20.00 |
162 |
108 |
54 |
108 |
65 |
144 |
126 |
4 |
18 |
65 |
M76 |
25.00 |
180 |
120 |
60 |
120 |
72 |
160 |
140 |
4 |
20 |
72 |

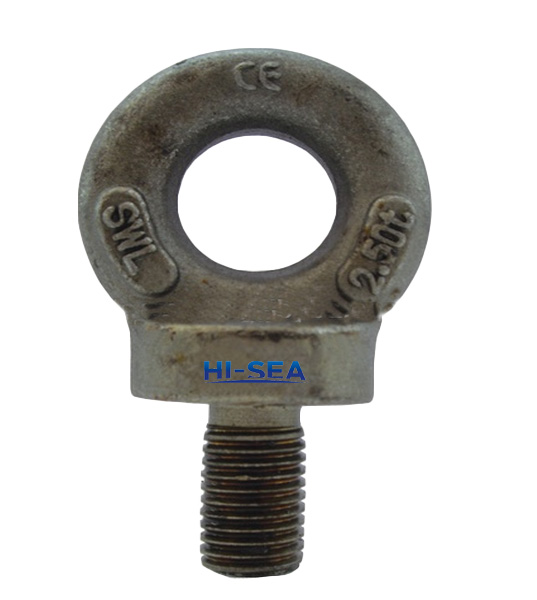

Photo:

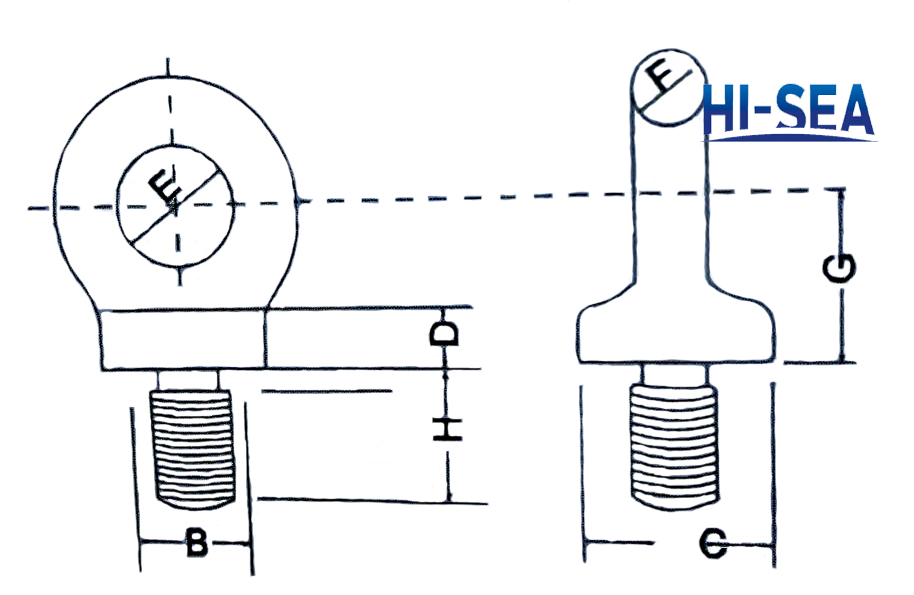

Structure:
