G-277 Shoulder Type Eye Bolt
[Search Related Products]
G-277 Shoulder Type Eye Bolts:
Our company has been specialized in producing this model for many years. All sizes are available and the price is very competitive. If you are interested in this product, please feel free to contact with us.
Details:
1. Model: G-277 Shoulder Type Eye Bolts
2. Material: Carbon steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: zinc plated, high polished
5. Size: Various sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Size
W.L.L.
Thread length
I.D.of eye
N.W.
inch
lbs
inch
inch
lbs/100pcs
1/4กม2
650
1.5
0.50
6.61
1/4กม4
650
2.5
0.50
8.61
5/16กม2-1/4
1200
1.5
0.60
12.50
5/16กม4-1/4
1200
2.5
0.60
18.75
3/8กม2-1/2
1550
1.5
0.80
19.00
3/8กม4-1/2
1550
2.5
0.80
31.58
1/2กม3-1/4
2600
1.5
1.00
37.50
1/2กม6
2600
3.0
1.00
56.25
5/8กม4
5200
2.0
1.30
75.00
5/8กม6
5200
3.0
1.30
100.25
3/4กม4-1/2
7200
2.0
1.50
125.00
3/4กม6
7200
3.0
1.50
150.00
7/8กม5
10600
2.5
1.80
225.00
1กม6
13300
3.0
2.00
375.00
1กม9
13300
4.0
2.00
429.00
1กม12
13300
4.0
2.00
550.00
1-1/4กม8
21000
4.0
2.50
650.00
1-1/4กม12
21000
4.0
2.50
775.00
1-1/2กม15
21000
6.0
3.00
1425.00

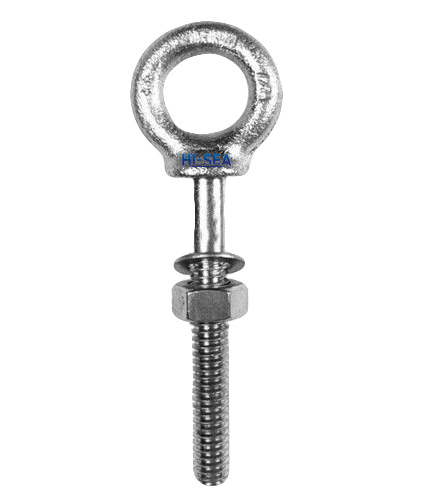

Photo:
