32mm Stud Link Anchor Chain

32mm Dia. Anchor Chain

Hi-Sea Marine has been a professional manufacturer, supplier & exporter of marine anchor chains since the year 1996. We supply all kinds of marine anchor chains and offshore mooring chains with CCS, LR, ABS, BV, GL, KR, NK, DNV, RINA, and IRS certificates of Classification Societies. Our company spirit is to offer the good quality products, superior service and preferential price for our customers

Product Detail

1. Type: Stud Link Anchor Chain

2. Diameter: 32mm (12.5mm to 162mm)

3. Grade: U2/U3
4. Surface treatment: hot galvanized, black painted.

5. Guarantee period: one year.

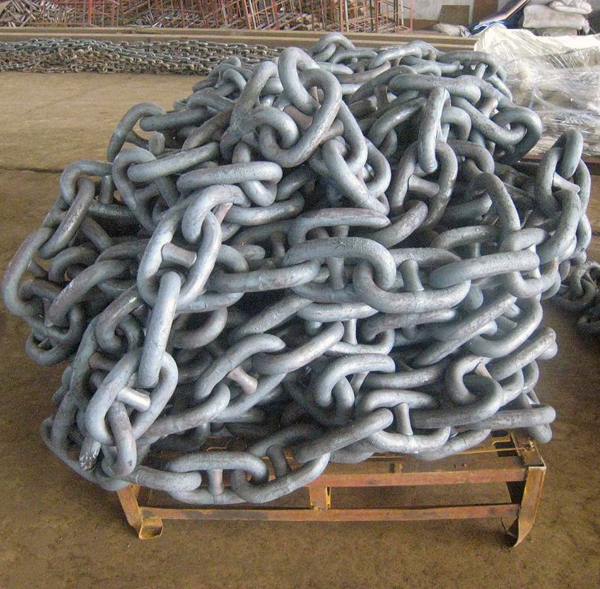

32mm Stud Link Anchor Chain

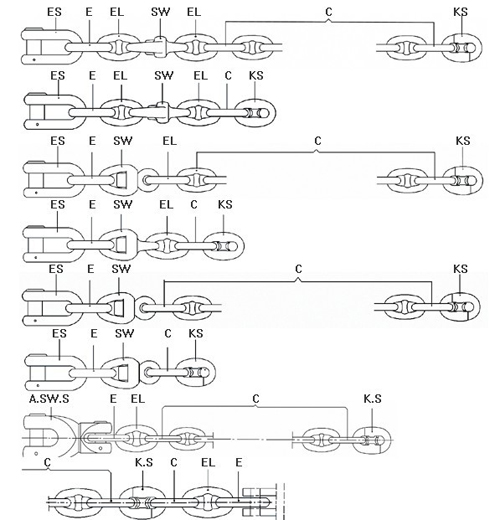

Anchor Chain Kenter Shackle Joining Form

32mm Stud Link Anchor Chain

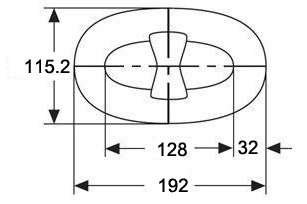

Stud Link Drawing

Anchor Chain Accessories Specification

Diameter

Stud Link Chain weights

Common Link

Enlarged Link

End Link

Joining Shackle Kenter

Joining Shackle Type D

Anchor Shackle Type D

Swivel

Swivel Shackle

mm

kgs/27.5m

kgs

kgs

kgs

kgs

kgs

kgs

kgs

kgs

32

657

2.9

3.9

4

4.6

7.5

12

11

33

32mm Stud Link Anchor Chain

Stud Link Anchor Chain

For more details, please feel free to contact us via e-mail or phone call.
