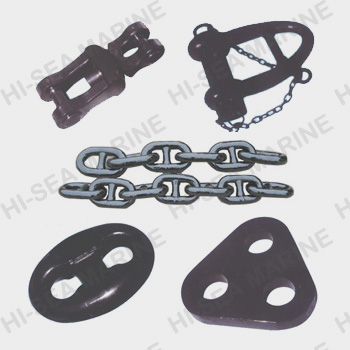

U2 Anchor Chain
[Search Related Products]
Our company supplies Grade 2 and Grade 3 marine anchor chains and accessories. The anchor chains include stud link anchor chains and studless link anchor chains. We can customize products according to our customer's special requirement. If you're interested in our products, please feel free to contact us. We'll give you a quick and satisfactory reply.
Product Detail
1.Material: CM490, CM690.
2.Size: 12mm-152mm.
3.Grade: U2, U3.
4.Surface: Self-colored, Black tarred Hot Dip Galvanized or as required
5.Certificate: LR, ABS, DNV, BV, NK, CCS etc.
Testing Load of Stud Link Anchor Chains
Diameter |
Outside Length |
Outside Width |
U2 |
U3 |
Weight |
||
Proof Load |
Breaking Load |
Proof Load |
Breaking Load |
||||
12.5 |
75 |
45 |
66 |
92 |
92 |
132 |
98 |
14 |
84 |
50.4 |
82 |
116 |
116 |
165 |
119 |
16 |
96 |
57.6 |
107 |
150 |
150 |
216 |
156 |
17.5 |
105 |
63 |
127 |
179 |
179 |
256 |
186 |
19 |
114 |
68.4 |
150 |
211 |
211 |
301 |
230 |
20.5 |
123 |
73.8 |
175 |
244 |
244 |
349 |
260 |
22 |
132 |
79.2 |
200 |
280 |
280 |
401 |
290 |
24 |
144 |
86.4 |
237 |
332 |
332 |
476 |
355 |
26 |
156 |
93.6 |
278 |
389 |
389 |
556 |
420 |
28 |
168 |
100.8 |
321 |
449 |
449 |
642 |
480 |
30 |
180 |
108 |
368 |
514 |
514 |
735 |
550 |
32 |
192 |
115.2 |
417 |
583 |
583 |
833 |
616 |
34 |
204 |
122.4 |
468 |
655 |
655 |
937 |
700 |
36 |
216 |
129.6 |
523 |
732 |
732 |
1050 |
790 |
38 |
228 |
136.8 |
581 |
812 |
812 |
1160 |
880 |
40 |
240 |
144 |
640 |
896 |
896 |
1280 |
1020 |
42 |
252 |
151.2 |
703 |
981 |
981 |
1400 |
1050 |
44 |
264 |
158.4 |
769 |
1080 |
1080 |
1540 |
1160 |
46 |
276 |
165.6 |
837 |
1170 |
1170 |
1680 |
1295 |
48 |
288 |
172.8 |
908 |
1270 |
1270 |
1810 |
1420 |
50 |
300 |
180 |
981 |
1370 |
1370 |
1960 |
1530 |
Testing Load of Studless Link Anchor Chains
Diameter |
M2 |
M3 |
||
Proof Load |
Breaking Load |
Proof Load |
Breaking Load |
|
mm |
KN |
KN |
KN |
KN |
50 |
584 |
1294 |
844 |
1960 |
48 |
838 |
1196 |
771 |
1810 |
46 |
494 |
1098 |
698 |
1680 |
44 |
452 |
1000 |
630 |
1540 |
42 |
412 |
915 |
597 |
1400 |
40 |
373 |
829 |
563 |
1280 |
38 |
337 |
749 |
501 |
1160 |
36 |
302 |
672 |
442 |
1050 |
34 |
270 |
600 |
386 |
937 |
32 |
239 |
531 |
335 |
833 |
30 |
211 |
468 |
311 |
735 |
28 |
183 |
407 |
286 |
642 |
26 |
158 |
351 |
241 |
556 |
24 |
135 |
299 |
210 |
476 |
Anchor Chains and Accessories
