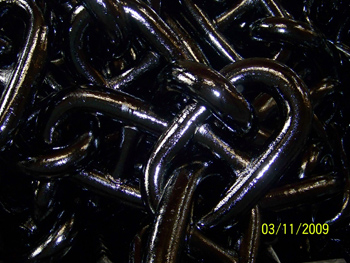

Marine Chain:

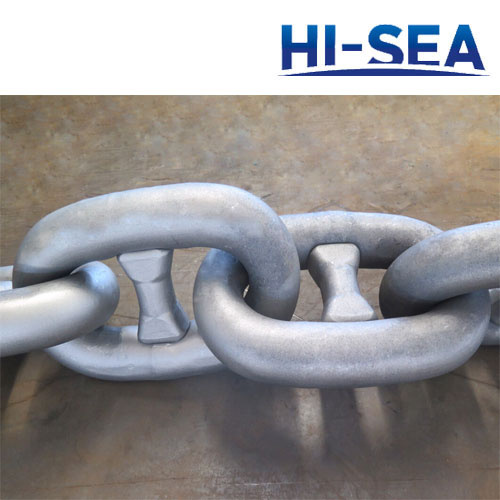

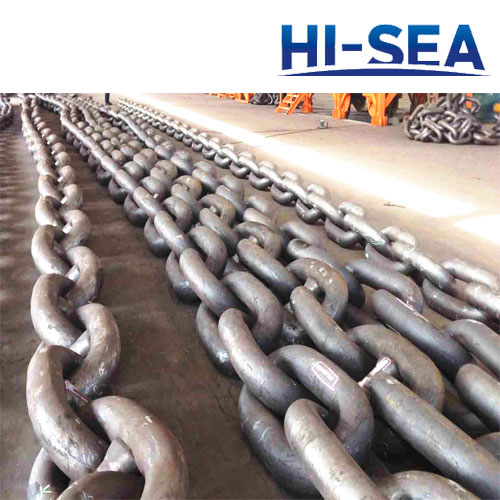

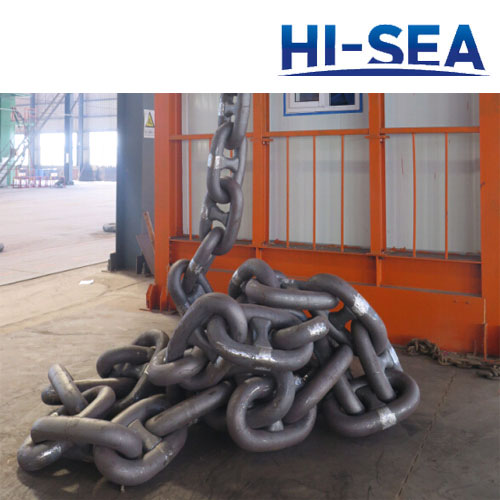

We have been the marine chain supplier since 1996, supplying stud link anchor chain, studless link anchor chain and mooring chain. ABS, LR, DNV, GL, BV, NK, IRS, CCS Certificate are available for our chains. With the advantage of wide source, good quality products and superior after-sale service, we would be your reliable partner in China.
Product Detail

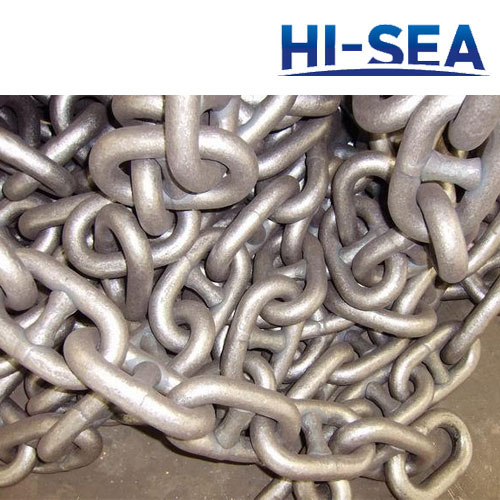

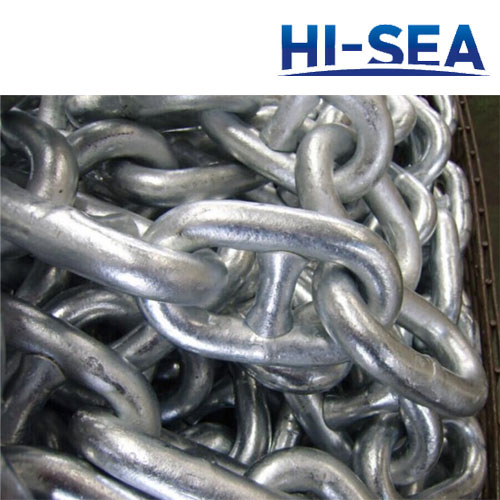

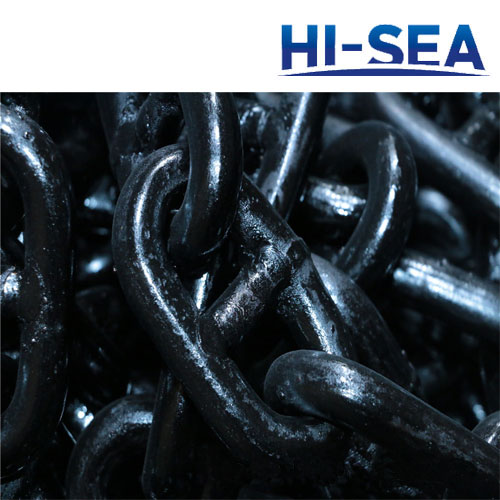

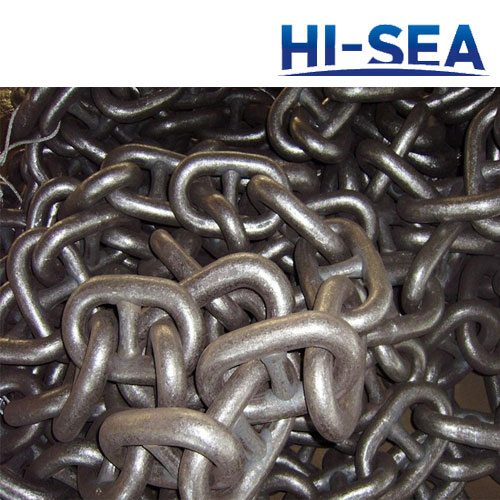

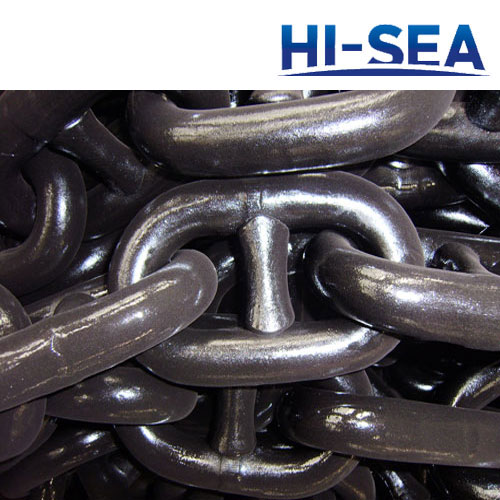

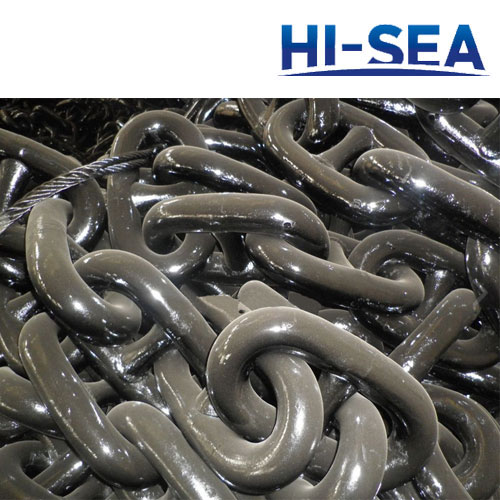

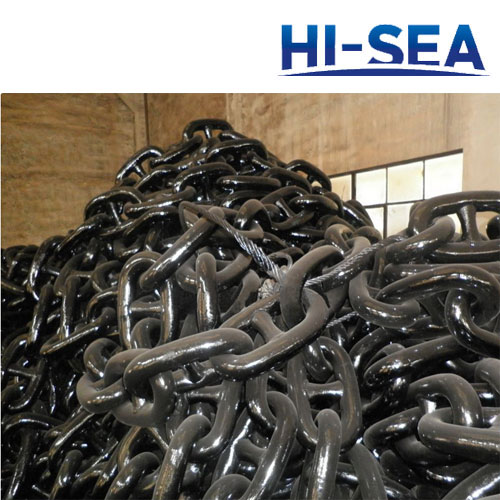

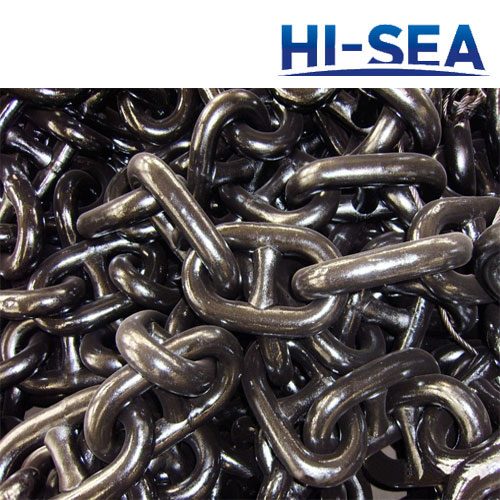

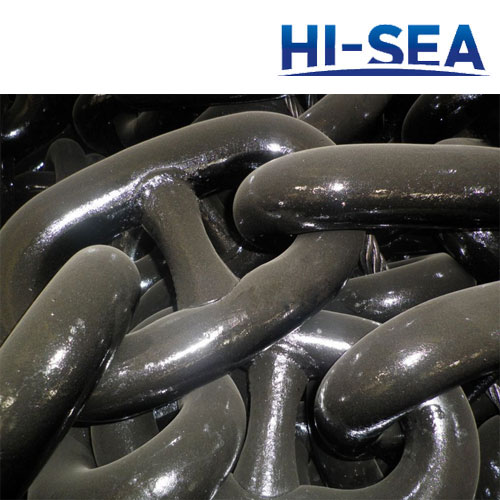

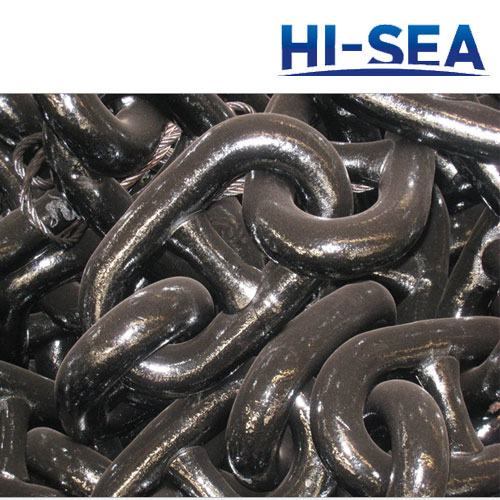

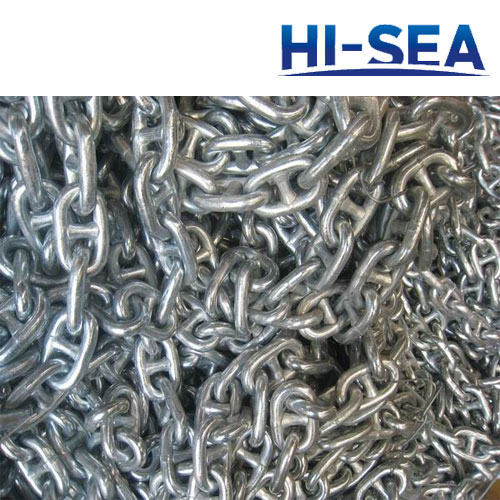

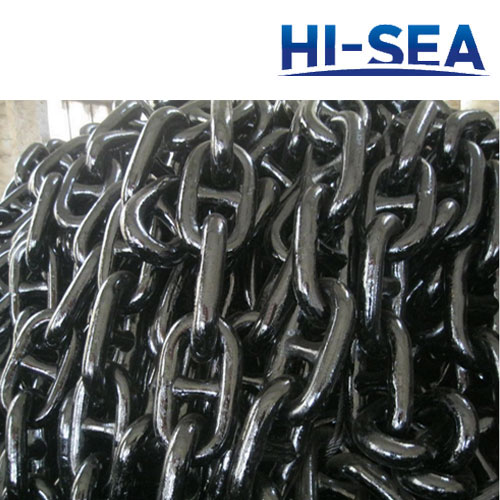

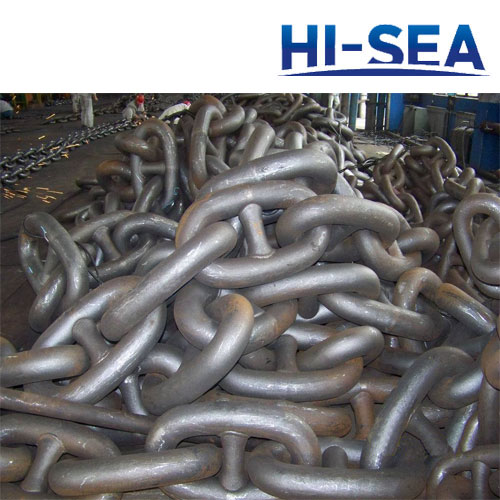

1. Stud Link Anchor Chain
Grade: U2/U3
Diameter: 12.5mm-140mm
ABS, LR, BV, NK, GL, DNV, RS,CCS Certificate
2. Joining Form of Anchor Chain
A: Kenter shackle-Chain connection

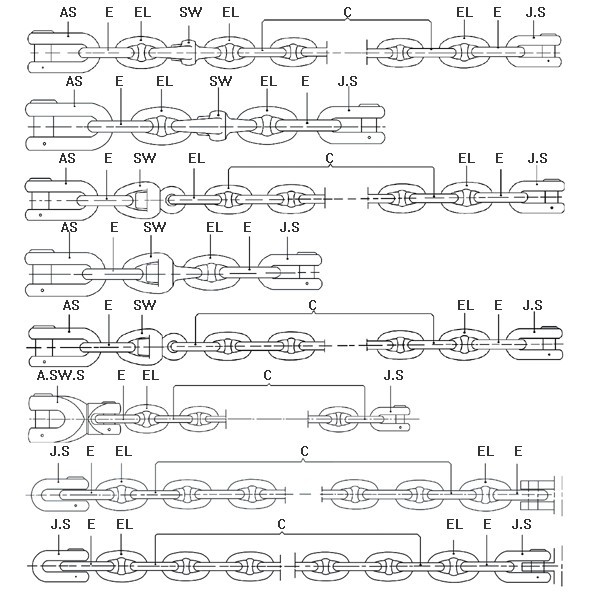

B: D Shackle Connection
3. Testing Load of Stud Link Anchor Chain (12.5mm to 162mm)
Diameter |
CHAIN LINK SIZE |
AM2 |
AM3 |
APPROX. |
|||
U2 STUD LINK CHAIN |
U3 STUD LINK CHAIN |
WEIGHT |
|||||
OUTSIDE |
OUTSIDE |
PROOF |
BREAKING |
PROOF |
BREAKING |
27.5M |
|
LENGTH |
WIDTH |
LOAD |
LOAD |
LOAD |
LOAD |
||
MM |
MM |
MM |
KN |
KN |
KN |
KN |
KG |
12.5 |
75 |
45 |
66 |
92 |
92 |
132 |
98 |
14 |
84 |
50.4 |
82 |
116 |
116 |
165 |
119 |
16 |
96 |
57.6 |
107 |
150 |
150 |
216 |
156 |
17.5 |
105 |
63 |
127 |
179 |
179 |
256 |
186 |
19 |
114 |
68.4 |
150 |
211 |
211 |
301 |
230 |
20.5 |
123 |
73.8 |
175 |
244 |
244 |
349 |
260 |
22 |
132 |
79.2 |
200 |
280 |
280 |
401 |
300 |
24 |
144 |
86.4 |
237 |
332 |
332 |
476 |
370 |
26 |
156 |
93.6 |
278 |
389 |
389 |
556 |
431 |
28 |
168 |
100.8 |
321 |
449 |
449 |
642 |
496 |
30 |
180 |
108 |
368 |
514 |
514 |
735 |
564 |
32 |
192 |
115.2 |
417 |
583 |
583 |
833 |
635 |
34 |
204 |
122.4 |
468 |
655 |
655 |
937 |
712 |
36 |
216 |
129.6 |
523 |
732 |
732 |
1050 |
800 |
38 |
228 |
136.8 |
581 |
812 |
812 |
1160 |
887 |
40 |
240 |
144 |
640 |
896 |
896 |
1280 |
1032 |
42 |
252 |
151.2 |
703 |
981 |
981 |
1400 |
1084 |
44 |
264 |
158.4 |
769 |
1080 |
1080 |
1540 |
1197 |
46 |
276 |
165.6 |
837 |
1170 |
1170 |
1680 |
1310 |
48 |
288 |
172.8 |
908 |
1270 |
1270 |
1810 |
1438 |
50 |
300 |
180 |
981 |
1370 |
1370 |
1960 |
1546 |
52 |
312 |
187.2 |
1060 |
1480 |
1480 |
2110 |
1661 |
54 |
324 |
194.4 |
1140 |
1590 |
1590 |
2270 |
1791 |
56 |
336 |
201.6 |
1220 |
1710 |
1710 |
2430 |
1926 |
58 |
348 |
208.8 |
1290 |
1810 |
1810 |
2600 |
2086 |
60 |
360 |
216 |
1380 |
1940 |
1940 |
2770 |
2249 |
62 |
372 |
223.2 |
1470 |
2060 |
2060 |
2940 |
2361 |
64 |
384 |
230.4 |
1560 |
2190 |
2190 |
3130 |
2516 |
66 |
396 |
237.6 |
1660 |
2310 |
2310 |
3300 |
2676 |
68 |
408 |
244.8 |
1750 |
2450 |
2450 |
3500 |
2885 |
70 |
420 |
252 |
1840 |
2580 |
2580 |
3690 |
3010 |

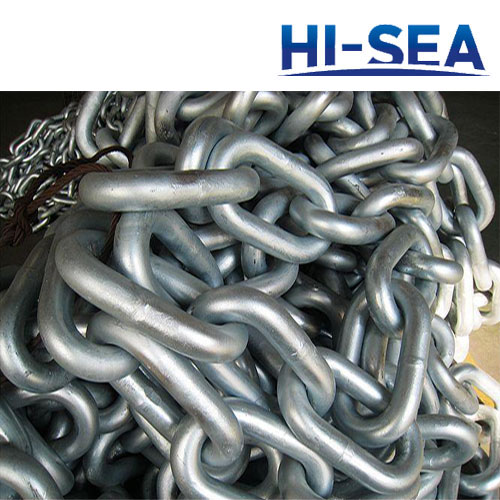

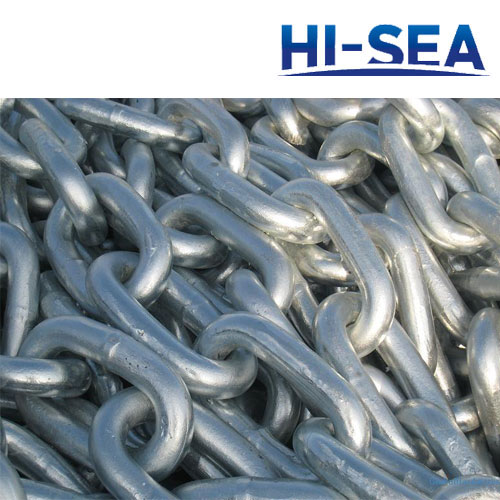

4. Testing Load of Studless Link Anchor Chain
Diameter |
M2 |
M3 |
||
Proof Load |
Breaking Load |
Proof Load |
Breaking Load |
|
mm |
KN |
KN |
KN |
KN |
50 |
584 |
1294 |
844 |
1960 |
48 |
838 |
1196 |
771 |
1810 |
46 |
494 |
1098 |
698 |
1680 |
44 |
452 |
1000 |
630 |
1540 |
42 |
412 |
915 |
597 |
1400 |
40 |
373 |
829 |
563 |
1280 |
38 |
337 |
749 |
501 |
1160 |
36 |
302 |
672 |
442 |
1050 |
34 |
270 |
600 |
386 |
937 |
32 |
239 |
531 |
335 |
833 |
30 |
211 |
468 |
311 |
735 |
28 |
183 |
407 |
286 |
642 |
26 |
158 |
351 |
241 |
556 |
24 |
135 |
299 |
210 |
476 |
