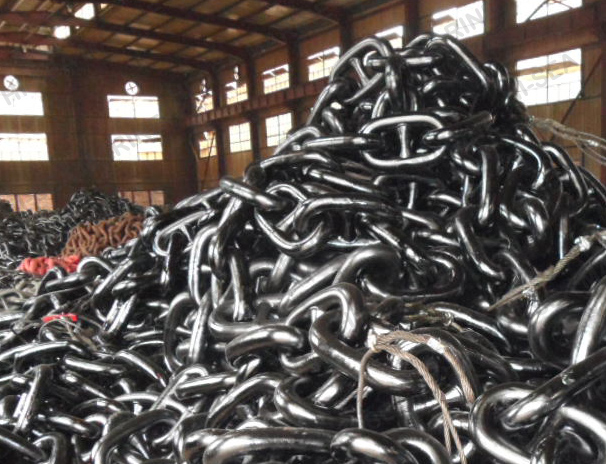

50MM U3 Stud Link Anchor Chain
We have been the marine chain supplier since 1996, supplying stud link anchor chain, studless link anchor chain and mooring chain. ABS, LR, DNV, GL, BV, NK, IRS, CCS Certificates are available for our chains. With the advantage of wide source, good quality and excellent after-sale service, we would be your reliable partner in China.
Product Detail
1. Type: Stud Link Anchor Chain
2.Grade: U2/U3
3. Material: Anchor Chain Steel
4. Diameter: 12.5mm-162mm
5. Certificate: ABS, LR, BV, NK, GL, DNV, RS,CCS etc.
Joining Form of Anchor Chain
A: Kenter Shackle-Chain Connection
B: D Shackle Connection
3. Testing Load of Stud Link Anchor Chain (Dia. 12.5mm to 162mm)
Diamter |
CHAIN LINK SIZE |
AM2 |
AM3 |
APPROX. |
|||
U2 STUD LINK CHAIN |
U3 STUD LINK CHAIN |
WEIGHT |
|||||
OUTSIDE |
OUTSIDE |
PROOF |
BREAKING |
PROOF |
BREAKING |
27.5M |
|
LENGTH |
WIDTH |
LOAD |
LOAD |
LOAD |
LOAD |
||
MM |
MM |
MM |
KN |
KN |
KN |
KN |
KG |
12.5 |
75 |
45 |
66 |
92 |
92 |
132 |
98 |
14 |
84 |
50.4 |
82 |
116 |
116 |
165 |
119 |
16 |
96 |
57.6 |
107 |
150 |
150 |
216 |
156 |
17.5 |
105 |
63 |
127 |
179 |
179 |
256 |
186 |
19 |
114 |
68.4 |
150 |
211 |
211 |
301 |
230 |
20.5 |
123 |
73.8 |
175 |
244 |
244 |
349 |
260 |
22 |
132 |
79.2 |
200 |
280 |
280 |
401 |
300 |
24 |
144 |
86.4 |
237 |
332 |
332 |
476 |
370 |
26 |
156 |
93.6 |
278 |
389 |
389 |
556 |
431 |
28 |
168 |
100.8 |
321 |
449 |
449 |
642 |
496 |
30 |
180 |
108 |
368 |
514 |
514 |
735 |
564 |
32 |
192 |
115.2 |
417 |
583 |
583 |
833 |
635 |
34 |
204 |
122.4 |
468 |
655 |
655 |
937 |
712 |
36 |
216 |
129.6 |
523 |
732 |
732 |
1050 |
800 |
38 |
228 |
136.8 |
581 |
812 |
812 |
1160 |
887 |
40 |
240 |
144 |
640 |
896 |
896 |
1280 |
1032 |
42 |
252 |
151.2 |
703 |
981 |
981 |
1400 |
1084 |
44 |
264 |
158.4 |
769 |
1080 |
1080 |
1540 |
1197 |
46 |
276 |
165.6 |
837 |
1170 |
1170 |
1680 |
1310 |
48 |
288 |
172.8 |
908 |
1270 |
1270 |
1810 |
1438 |
50 |
300 |
180 |
981 |
1370 |
1370 |
1960 |
1546 |
52 |
312 |
187.2 |
1060 |
1480 |
1480 |
2110 |
1661 |
54 |
324 |
194.4 |
1140 |
1590 |
1590 |
2270 |
1791 |
56 |
336 |
201.6 |
1220 |
1710 |
1710 |
2430 |
1926 |
58 |
348 |
208.8 |
1290 |
1810 |
1810 |
2600 |
2086 |
60 |
360 |
216 |
1380 |
1940 |
1940 |
2770 |
2249 |
62 |
372 |
223.2 |
1470 |
2060 |
2060 |
2940 |
2361 |
64 |
384 |
230.4 |
1560 |
2190 |
2190 |
3130 |
2516 |
66 |
396 |
237.6 |
1660 |
2310 |
2310 |
3300 |
2676 |
68 |
408 |
244.8 |
1750 |
2450 |
2450 |
3500 |
2885 |
70 |
420 |
252 |
1840 |
2580 |
2580 |
3690 |
3010 |
If you need other anchor chains or mooring chains, please click Here!
