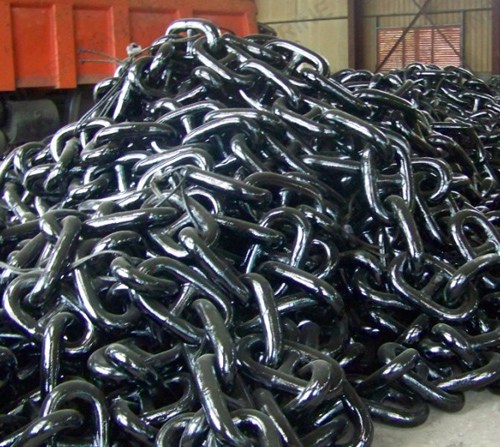

34mm U2 Stud Link Anchor Chain
[Search Related Products]
34MM U2 Stud Link Anchor Chain:
Marine anchor chains have two types: stud link anchor chains and studless anchor chains. Every two links of stud link chains are connected by Kenter shackle. While the studless links are connected by joining shackle.
Hi-Sea Marine has been a professional marine chain supplier for many years. We supply stud link anchor chain, studless link anchor chain, mooring chain and other industrial chains. All our anchor chains are approved by various Classification Societies and issued the certificates such as ABS, LR, DNV, GL, BV, NK, IRS, CCS. With the advantage of wide source, good quality and after-sale service, we would be your reliable partner in China.
Porduct Detail
1. Stud Link Anchor Chain
Grade: U2/U3
Diameter: 12.5mm-140mm
ABS, LR, BV, NK, GL, DNV, RS,CCS Certificate
2. Joining Form of Anchor Chain
A: Kenter shackle-Chain connection
B: D Shackle Connection
3. Specifications
Diamter |
CHAIN LINK SIZE |
AM2 |
AM3 |
APPROX. |
|||
U2 STUD LINK CHAIN |
U3 STUD LINK CHAIN |
WEIGHT |
|||||
OUTSIDE |
OUTSIDE |
PROOF |
BREAKING |
PROOF |
BREAKING |
27.5M |
|
LENGTH |
WIDTH |
LOAD |
LOAD |
LOAD |
LOAD |
||
MM |
MM |
MM |
KN |
KN |
KN |
KN |
KG |
12.5 |
75 |
45 |
66 |
92 |
92 |
132 |
98 |
14 |
84 |
50.4 |
82 |
116 |
116 |
165 |
119 |
16 |
96 |
57.6 |
107 |
150 |
150 |
216 |
156 |
17.5 |
105 |
63 |
127 |
179 |
179 |
256 |
186 |
19 |
114 |
68.4 |
150 |
211 |
211 |
301 |
230 |
20.5 |
123 |
73.8 |
175 |
244 |
244 |
349 |
260 |
22 |
132 |
79.2 |
200 |
280 |
280 |
401 |
300 |
24 |
144 |
86.4 |
237 |
332 |
332 |
476 |
370 |
26 |
156 |
93.6 |
278 |
389 |
389 |
556 |
431 |
28 |
168 |
100.8 |
321 |
449 |
449 |
642 |
496 |
30 |
180 |
108 |
368 |
514 |
514 |
735 |
564 |
32 |
192 |
115.2 |
417 |
583 |
583 |
833 |
635 |
34 |
204 |
122.4 |
468 |
655 |
655 |
937 |
712 |
36 |
216 |
129.6 |
523 |
732 |
732 |
1050 |
800 |
38 |
228 |
136.8 |
581 |
812 |
812 |
1160 |
887 |
40 |
240 |
144 |
640 |
896 |
896 |
1280 |
1032 |
42 |
252 |
151.2 |
703 |
981 |
981 |
1400 |
1084 |
44 |
264 |
158.4 |
769 |
1080 |
1080 |
1540 |
1197 |
46 |
276 |
165.6 |
837 |
1170 |
1170 |
1680 |
1310 |
48 |
288 |
172.8 |
908 |
1270 |
1270 |
1810 |
1438 |
50 |
300 |
180 |
981 |
1370 |
1370 |
1960 |
1546 |
52 |
312 |
187.2 |
1060 |
1480 |
1480 |
2110 |
1661 |
54 |
324 |
194.4 |
1140 |
1590 |
1590 |
2270 |
1791 |
56 |
336 |
201.6 |
1220 |
1710 |
1710 |
2430 |
1926 |
58 |
348 |
208.8 |
1290 |
1810 |
1810 |
2600 |
2086 |
60 |
360 |
216 |
1380 |
1940 |
1940 |
2770 |
2249 |
62 |
372 |
223.2 |
1470 |
2060 |
2060 |
2940 |
2361 |
64 |
384 |
230.4 |
1560 |
2190 |
2190 |
3130 |
2516 |
66 |
396 |
237.6 |
1660 |
2310 |
2310 |
3300 |
2676 |
68 |
408 |
244.8 |
1750 |
2450 |
2450 |
3500 |
2885 |
70 |
420 |
252 |
1840 |
2580 |
2580 |
3690 |
3010 |
If you need other anchor chains or mooring chains, please click Here!
