Marine Open Link Anchor Chain
Marine open link anchor chains are also called studless link anchor chains. It is often used for offshore moorings.
Product Detail
1. Chain Diameter: 16mm to 70mm
2. Grade: U1/U2/U3
3. Material: CM370, CM490, CM690
4. Surface: Self-colored, hot dip galvanized, painted black or as required
5. Certificate: CCS, ABS, LR, BV, NK, GL,DNV,RS, IRS etc.
6. Application: offshore moorings
Open Link Anchor Chain
Specification

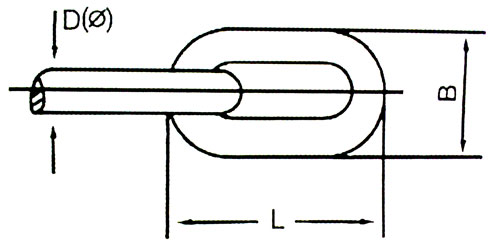

Open Link Anchor Chain/Studless Anchor Chain, Link Size (6*3.6D), Test Load and Weight |
|||||||||
Diameter D(¦µ) |
Chain Link Size |
BM1/U1 Open Link Chain |
BM2/U2 Open Link Chain |
BM3/U3 Open Link Chain |
Approx Weight |
||||
Outside Length(L) |
Outside Width(B) |
Proof Load |
Breaking Load |
Proof Load |
Breaking Load |
Proof Load |
Breaking Load |
27.5m |
|
MM |
MM |
MM |
KN |
KN |
KN |
KN |
KN |
KN |
KG |
16 |
96 |
57.6 |
47.10 |
94.72 |
66.20 |
132.30 |
92.42 |
184.83 |
139.43 |
17.5 |
105 |
63 |
56.35 |
113.31 |
78.89 |
157.78 |
110.55 |
221.10 |
178.35 |
19 |
114 |
68.4 |
66.42 |
133.57 |
93.60 |
187.20 |
130.32 |
260.64 |
217.68 |
20.5 |
123 |
73.8 |
77.33 |
155.49 |
108.64 |
217.27 |
151.70 |
303.42 |
229.14 |
22 |
132 |
79.2 |
89.06 |
179.08 |
125.40 |
250.90 |
174.40 |
349.40 |
264.49 |
24 |
144 |
86.4 |
105.98 |
213.25 |
149.90 |
298.90 |
207.90 |
415.80 |
341.82 |
26 |
156 |
93.6 |
124.38 |
250.12 |
175.40 |
350.80 |
244.00 |
488.00 |
369.94 |
28 |
168 |
100.8 |
144.26 |
290.08 |
203.80 |
406.70 |
283.00 |
566.00 |
427.98 |
30 |
180 |
108 |
165.60 |
333.00 |
234.20 |
467.50 |
324.00 |
649.80 |
490.98 |
32 |
192 |
115.2 |
188.42 |
378.88 |
265.60 |
531.20 |
369.60 |
739.30 |
559.65 |
34 |
204 |
122.4 |
212.70 |
427.72 |
299.90 |
599.80 |
417.30 |
834.60 |
671.52 |
36 |
216 |
129.6 |
238.46 |
479.52 |
336.10 |
672.30 |
467.80 |
935.70 |
707.85 |
38 |
228 |
136.8 |
265.70 |
534.28 |
374.40 |
748.70 |
521.30 |
1042.50 |
788.98 |
40 |
240 |
144 |
294.40 |
592.00 |
414.50 |
829.10 |
577.60 |
1155.20 |
869.36 |
42 |
252 |
151.2 |
324.58 |
652.68 |
457.70 |
915.30 |
636.80 |
1273.60 |
959.30 |
44 |
264 |
158.4 |
356.22 |
716.32 |
502.70 |
999.60 |
698.90 |
1398.00 |
1111.25 |
46 |
276 |
165.6 |
389.34 |
782.92 |
548.80 |
1097.60 |
763.90 |
1527.80 |
1152.07 |
48 |
288 |
172.8 |
423.94 |
852.48 |
597.80 |
1195.60 |
831.70 |
1663.50 |
1256.26 |
50 |
300 |
180 |
460.00 |
926.09 |
648.80 |
1293.60 |
902.50 |
1805.00 |
1360.41 |
52 |
312 |
187.2 |
497.54 |
1000.48 |
697.63 |
1395.26 |
976.14 |
1952.28 |
1485.61 |
54 |
324 |
194.4 |
536.54 |
1078.92 |
752.33 |
1504.66 |
1052.68 |
2105.36 |
1648.08 |
56 |
336 |
201.6 |
577.02 |
1160.32 |
809.09 |
1618.18 |
1132.10 |
2264.20 |
1715.97 |
58 |
348 |
208.8 |
618.98 |
1244.68 |
867.91 |
1735.82 |
1214.40 |
2428.80 |
1844.50 |
60 |
360 |
216 |
662.40 |
1332.00 |
928.80 |
1857.60 |
1299.60 |
2599.20 |
1973.29 |
62 |
372 |
223.2 |
707.30 |
1422.28 |
991.75 |
1983.50 |
1387.68 |
2775.36 |
2101.56 |
64 |
384 |
230.4 |
753.66 |
1515.52 |
1056.77 |
2113.54 |
1478.66 |
2957.32 |
2298.10 |
66 |
396 |
237.6 |
801.50 |
1611.72 |
1123.85 |
2247.70 |
1572.52 |
3145.04 |
2398.10 |
68 |
408 |
244.8 |
850.82 |
1710.88 |
1192.99 |
2385.98 |
1669.26 |
3338.52 |
2522.88 |
70 |
420 |
252 |
901.60 |
1813.00 |
1264.20 |
2528.40 |
1768.90 |
3537.80 |
2697.65 |
GENERAL INFORMATION OF ANCHOR CHAIN
¡ñ The inside length (grip or pitch) of one link is 4 wire diameters.
¡ñ The outside length of one link is 6 wire diameters.
¡ñ The outside width of one link is 3.56 wire diameters.
¡ñ The gauge-test length is the outside length over 6 links and equals 26 wire diameters.
¡ñ The weight of one links is about 3-1/3 times its wire diameter cubed.
¡ñ Doubling the wire diameter of one link multiplies its weight by 8.
¡ñ The weight of 1 linear foot of chain is 10 times its wire diameter squared.
¡ñ The length of a standard 'shot' = 15 fathoms = 90ft.= 1080'.
¡ñ The weight of a 90ft. shot = 900 times its wire diameter squared.
¡ñ Doubling the wire diameter of a 90ft. shot multiplies its weight by 4.
¡ñ Doubling the size of chain theoretically multiplies its strength by 4, in practice, by a trifle less than 4.
¡ñ The safe working load of chain is ordinarily assumed as one half the proof test.
How to order anchor chain ?
¡ñ Chain Diameter & Grade
¡ñLength: 27.5m or 25m
¡ñ Finish: H. D. Galvanized or Black-tarred.
¡ñ Quantity of Lengths
¡ñ Quantity of Fittings
¡ñ Class Certifications: ABS(USA), BV(France), CCS(China), DNV(Norway), GL(Germany), KR(Korea), LR(U. K. ), NK(Japan), RINA(Italy), RS(Russia) & Mill Certificate
