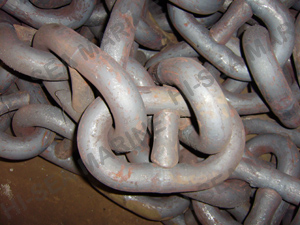

Mooring Chain
[Search Related Products]
Mooring chains are used as important safety anchoring facilities on ocean development facilities such as offshore drilling, oil production and mining etc..
Application
Offshore mooring chains are mainly used for offshore oil platform, offshore oil storage ship, offshore buoys and other other ocean development facilities.
Grade
Offshore mooring chains have 5 grades of steel: R3, R3S, R4, R4S, R5. R3 and R3S grade mooring chains are mainly used for the marine continental shelf development facilities. While, the R4 grade mooring chains are used for deep-sea development facilities.
Certificate
CCS, ABS, NK, LR, DNV, GL, BV, KR,RS, IRS etc.
Diameter
Stud and studless link chain diameter: 34mm to 162mm
Proof and Breaking Load
Chain Diameter
|
R3 |
R3s |
R4 |
|||||
Stud, Studless Tension |
Breaking Load |
Studless Tension |
Stud Tension |
Breaking Load |
Studless Tension |
Stud Tension |
Breaking Load |
|
34 |
745 |
1065 |
831 |
859 |
1189 |
917 |
1031 |
1308 |
36 |
832 |
1189 |
928 |
960 |
1327 |
1024 |
1152 |
1461 |
38 |
923 |
1319 |
1030 |
1065 |
1473 |
1136 |
1278 |
1621 |
40 |
1019 |
1456 |
1136 |
1176 |
1626 |
1254 |
1411 |
1789 |
42 |
1119 |
1599 |
1248 |
1291 |
1786 |
1377 |
1549 |
1965 |
44 |
1223 |
1748 |
1364 |
1411 |
1952 |
1505 |
1693 |
2148 |
46 |
1331 |
1903 |
1485 |
1536 |
2124 |
1639 |
1843 |
2338 |
48 |
1444 |
2064 |
1610 |
1666 |
2304 |
1777 |
1999 |
2536 |
50 |
1560 |
2230 |
1740 |
1800 |
2490 |
1920 |
2160 |
2740 |
52 |
1681 |
2403 |
1875 |
1940 |
2683 |
2069 |
2327 |
2952 |
54 |
1806 |
2581 |
2014 |
2083 |
2882 |
2222 |
2500 |
3171 |
56 |
1934 |
2764 |
2157 |
2231 |
3086 |
2380 |
2677 |
3396 |
58 |
2066 |
2953 |
2304 |
2384 |
3297 |
2543 |
2860 |
3628 |
60 |
2202 |
3147 |
2456 |
2541 |
3514 |
2710 |
3049 |
3867 |
62 |
2342 |
3347 |
2612 |
2702 |
3737 |
2882 |
3242 |
4112 |
64 |
2485 |
3552 |
2771 |
2867 |
3966 |
3058 |
3440 |
4364 |
66 |
2632 |
3762 |
2935 |
3036 |
4200 |
3239 |
3644 |
4622 |
68 |
2782 |
3977 |
3103 |
3210 |
4440 |
3424 |
3852 |
4886 |
70 |
2936 |
4196 |
3274 |
3387 |
4686 |
3613 |
4065 |
5156 |
73 |
3173 |
4535 |
3539 |
3661 |
5064 |
3905 |
4393 |
5572 |
76 |
3417 |
4885 |
3812 |
3943 |
5454 |
4206 |
4731 |
6002 |
78 |
3584 |
5124 |
3998 |
4136 |
5721 |
4411 |
4963 |
6295 |
81 |
3841 |
5490 |
4284 |
4432 |
6130 |
4727 |
5318 |
6746 |
84 |
4104 |
5866 |
4578 |
4735 |
6550 |
5051 |
5682 |
7208 |
87 |
4374 |
6252 |
4879 |
5047 |
6981 |
5383 |
6056 |
7682 |
90 |
4651 |
6648 |
5187 |
5366 |
7423 |
5724 |
6439 |
8168 |
92 |
4838 |
6916 |
5397 |
5583 |
7723 |
5955 |
6699 |
8498 |
95 |
5125 |
7326 |
5717 |
5914 |
8180 |
6308 |
7096 |
9002 |
97 |
5320 |
7604 |
5934 |
6138 |
8491 |
6547 |
7366 |
9343 |
100 |
5616 |
8028 |
6264 |
6480 |
8964 |
6912 |
7776 |
9864 |
102 |
5817 |
8316 |
6489 |
6712 |
9285 |
7160 |
8055 |
10217 |
105 |
6123 |
8753 |
6830 |
7065 |
9774 |
7536 |
8478 |
10755 |
107 |
6330 |
9049 |
7061 |
7304 |
10104 |
7791 |
8765 |
11118 |
111 |
6751 |
9650 |
7530 |
7789 |
10775 |
8309 |
9347 |
11857 |
114 |
7072 |
10109 |
7888 |
8160 |
11288 |
8704 |
9792 |
12421 |
117 |
7398 |
10575 |
8251 |
8536 |
11808 |
9105 |
10243 |
12993 |
120 |
7728 |
11047 |
8620 |
8917 |
12335 |
9511 |
10700 |
13573 |
122 |
7951 |
11365 |
8868 |
9174 |
12690 |
9785 |
11008 |
13964 |
124 |
8175 |
11686 |
9118 |
9433 |
13048 |
10062 |
11319 |
14358 |
127 |
8515 |
12172 |
9498 |
9825 |
13591 |
10480 |
11790 |
14956 |
130 |
8859 |
12663 |
9881 |
10222 |
14140 |
10903 |
12266 |
15559 |
132 |
9090 |
12994 |
10139 |
10488 |
14509 |
11188 |
12586 |
15965 |
137 |
9674 |
13829 |
10791 |
11163 |
15442 |
11907 |
13395 |
16992 |
142 |
10268 |
14677 |
11452 |
11847 |
16389 |
12637 |
14217 |
18034 |
147 |
10869 |
15536 |
12123 |
12541 |
17348 |
13377 |
15049 |
19089 |
152 |
11476 |
16405 |
12800 |
13242 |
18318 |
14125 |
15890 |
20157 |
157 |
12090 |
17282 |
13485 |
13950 |
19297 |
14880 |
16740 |
21235 |
162 |
12708 |
18166 |
14175 |
14664 |
20284 |
15641 |
17596 |
22321 |
How to order anchor chain ?
¡ñ Chain Diameter & Grade
¡ñLength: 27.5m or 25m
¡ñ Quantity of Lengths
¡ñ Quantity of Fittings
¡ñ Class Certifications: ABS(USA), BV(France), CCS(China), DNV(Norway), GL(Germany), KR(Korea), LR(U. K. ), NK(Japan), RINA(Italy), RS(Russia) & Mill Certificate
